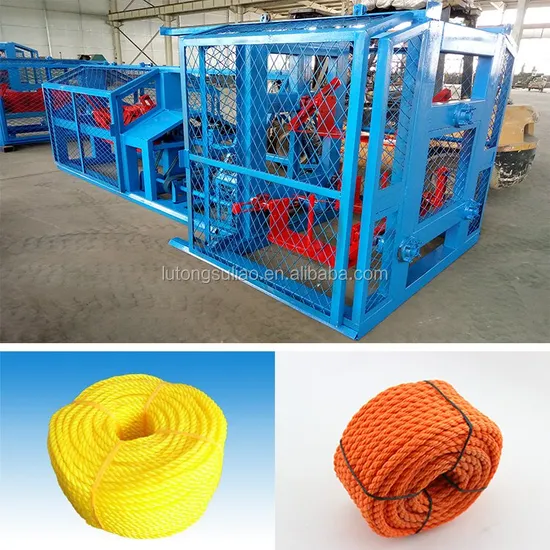

Automatic Plastic Twisted Rope Making Machine for Making 3 or 4 Strands Rope

Product Description

Product Description
Usage :This machine is suitable for making ropes with Nylon, PE, PP, etc. It consists of rope making device and strand making device, and can produce rope with Dia.4-28mm after continuous operation once and omit extra working steps from strand making to rope making, thereby the production efficiency is greatly improved. There is no waste yarn or scrap coming out during the production process, so the ropes are more attractive and durabl
Rope making machine operation:
1. Put yarn bobbins on machine, and choose bobbins' quantity according to finished rope diameter.
2. Adjust strands and rope twist by exchange gears.
3.Before take rope off, tie rope coil with thin string.
Machine main features: High reliability and output Fitted with inverter drive Increased take-up capacity

Two ropes lays per revolution Constant winding tension Low power consumption

Easy maintenance Easy adjust strand twist.

Rope making machine finished product:
1. Twisted or double twisted rope can be made.
2. PE monofilament, PP split film, Dan line yarn, polyester yarn, jute, cotton yarn are available.
Rope makin machine main Technical Parameter :

Model	Revolution of principal Axis (r/min)	Dia of rope(mm)	Automatic Lining machine	Twist (t/m)	Direction of twist	Motor power	Dimension (m)	Output (t/day)
M77	320	20 -30	GP40	16-62	s/z	18KW-4	12 * 2.3* 2.1	1.5-2
M66	350	12 -20	GP40	16-62	s/z	15KW-4	9* 2.3 * 2.1	0.9-1.5
M55	420	8 -14	GP30	16-62	s/z	7.5KW-4	6.86* 2 * 2.1	0.8-1.1
M44	620	4 -10		16-62	s/z	5.5KW-4	5* 1.9* 1.8	0.3-0.6
M33	900	3 -6		26-82	s/z	3KW-4	4* 1.9* 1.8	0.2-0.4

Finished product display

Detailed Photos
Manufacture and process:
Our company was established in 2003. Founded before we already have a wealth of rope production experience, on the basis of long time rope productions, we setup new factory in 2006, which manufactures plastic machines relevant with rope production. Therefore, we can provide you with high-quality machines, meanwhile, we can help to supply solution suggestions for some problems appeared during your rope production according to our years of production experience. Discuss and study together for further progress.
Customer's service
Warranty period of one year. Within one year the main components of the machine problems, we provide replaced spare parts (except for the improper operation of the buyer); if technical problem can be solved by buyer, we can supply solution by email or phone. For operating problem occurred during production, you can contact with us at any time.

---
