Single/Two/Three Phase 80A Coil 6VDC 9VDC 12VDC 24VDC Magnetic Latching Relay for Energy/Power/Electric/Electricity Meter

Product Description

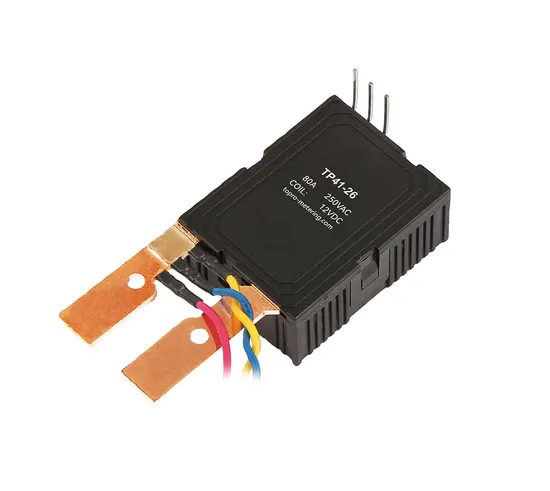

Polarized latching relay TP41-26, with continuous switching current capability up to 80A. The relay coil can be designed to single coil or double coil with coil voltage from 5VDC,6VDC,9VDC,12VDC etc. The relay is designed and manufactured in accordance to IEC 61810-1 as well as meet the requirements of IEC 62055-31 UC1.
1. Both Single coil and double coil can be customized, the coil rated voltage can be 5VDC-48VDC;
2. Multi-layer blades, low temperature rise;
3. Silver alloy contacts materials AgSnO2, with reliable electrical endurance;
4. Outline dimension:39mm×30mm×16.5mm;
5. Latching relay with 250 micro Ohm shunt 300 micro Ohm shunt
6. Cost Efficiency.
Coil data

Rated Coil voltage	6VDC, 9VDC, 12VDC,18VDC, 24VDC, 48VDC
Single coil power	1W (Or 1.5W)
Double coil power	2W(Or 3W)
Pulse width	50ms Max
Pulse time	<20 ms (At rated voltage)

Contact data

Contact materials	AgSnO2
Contact arrangement	1A(B)
Contact resistance	1.0mΩ Max(Test under 1A/6VDC)
Max switching current	80A
Max switching voltage	250VAC
Max switching power	20000VA
Mechanical life	1×105 OPS
Electrical life	1×104 OPS

Standard winding(Coil voltage can be customized)

Rated coil voltage(VDC)	Max operating voltage(VDC)	Coil resistance (1±10%)(Ω)
Single winding
6	4.8	36
9	7.2	81
12	9.6	144
24	19.2	576
48	38.4	2304
Double winding
6	4.8	18+18
9	7.2	40.5+40.5
12	9.6	72+72
24	19.2	288+288
48	38.4	1152+1152

Characteristics

Insulation resistance	1000MΩ
Dielectric strength between coil	4000V 1 minute
Dielectric strength between contact	1800V 1 minute
Creepage distance	8mm
Shock resistance	147m/S2
Vibration resistance	10-55HZ amplitude 1.5mm
Ambient temperature	-40-+85ºC
Weight	Approx.45g
Construction	Dust protection

Outline dimensions and circuit diagram

---
