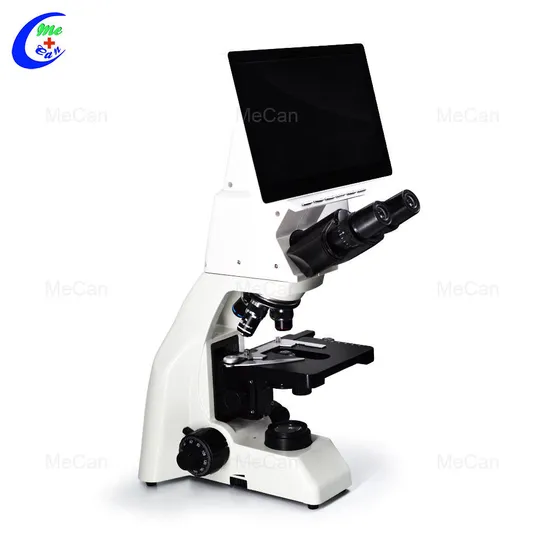

Factory Price Binoculars Desktop Educational with Binocular Laboratory Trinocular Stereo 4K Microscope Camera

Product Description

Product DescriptionMedical USB 4K Trinocular Blood Biological Digital Microscope with Screen
Model:MCL-20041.Full HD Display: 10.6" HD LCD screen;
2.Full HD Camera: The highest 12M images ,1080P/60fps HD video with memory card(Max:32G) to store inspection results anytime ,no need to connect to PC.;
3.HDMI HD Output, freely connect to big monitor to anaysis 4.Continuing Zoom Range:0.7X~4.5X, Total magnifications:14X~100X.
5.Wireless Connection:Download pictures or videos from the APP to share or process later data;
6.WDR: Improve video clarity in dark;
7.Worktable Size: 380*250*20mm ,suitable for all kinds of inspection and operation tasks;
8.Multiple Measuring Functions: Crosshair, reticle, degree scale, etc.(Customizable) Product Parameters

Model Parameter
LCD Screen	Size	10.6 inch IPS 10.6 Inches IPS
	Resolution	1366*768
Optical Parameter	Optical System	Finite Optical System
		Infinite Optical System
	Achromatic Objective	4× N.A=0.1 WD=18
		10× N.A=0.25 WD=7
		40× N.A=0.65 WD=0.53
		100× N.A=1.25 WD=0.13
	Infinite Semi-Plan Achromatic Objective	4× N.A=0.1 WD=16.8
		10× N.A=0.25 WD=5.8
		40× N.A=0.65 WD=0.43
		100× N.A=1.25 WD=0.13
	Viewing Head	Seidentopf Binocular Viewing Head Inclined at 30°,Interpupillary 47-78mm
	Eyepiece	WF10×/18
		WF10×/20
	Focusing System	Coaxial Coarse and Fine Adjustment,Fine Division 0.002mm,Moving Range 25mm
	Nosepiece	Backward Quadruple Nosepiece
	Stage	Double Layers Mechanical Stage 140×140mm,Moving Range75×50mm
		Rackless double Layers Mechanical Stage 150×139mm,Moving Range75×52mm
	Condenser	NA1.25 Abbe Condenser
	Illumination	S-LED Illumination
Digital parameters	Photo Resolution	4592*3072
	Camera Pixel	1200w
	Video Resolution	1080p/60fps
	Data Output	HDMI
	Wireless Connection	Yes(optional)
	WDR	Yes
	Function	Automatic exposure, exposure offset, automatic white balance, multiple measurement methods, video recording, local storage (maximum memory 32G)
	Storage	SD Card
	Measurement & Position	Yes(Customizable)
	External Interface	Projector/Monitor

The Platform Parameters of Our Lab Microscope:

Illumination	LED Lamp, Brightness Adjustable,Side LED lights
Focus Range	60mm
Operating Distance	88mm
Column	Round column
Bracket Size	380mm*250mm*20mm
Accessory	SD Card
Supply Voltage	DC12V
