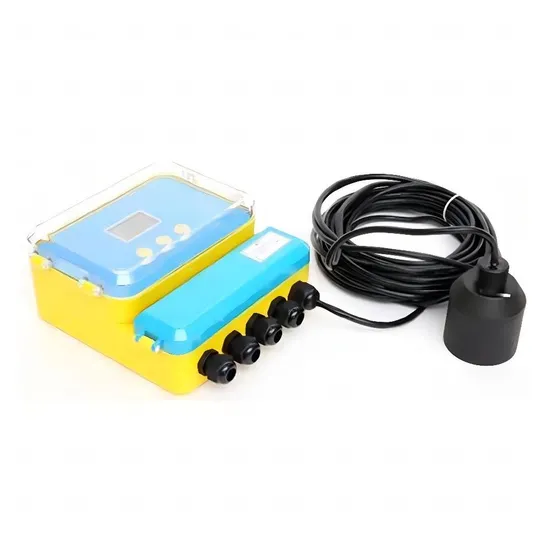

4~20mA RS485 Split Type Ultrasonic Level Gauge for Liquid Oil Fuel Solid

Product Description

Product Description
The principle of a split type ultrasonic level gauge is to measure the time required for the entire process of an ultrasonic pulse from emission to return.
The ultrasonic level gauge is installed vertically on the surface of the liquid and emits an ultrasonic pulse to the liquid surface. After a period of time, the sensor of the ultrasonic level gauge receives a signal reflected back from the liquid level, which is then selected and processed by the transmitter circuit. Calculate the distance from the liquid level to the sensor based on the time difference between the ultrasonic level gauge emitting and receiving ultrasonic waves.
Split type ultrasonic level gauges are widely used for measuring the liquid level and volume of tanks, water tanks, and reservoirs, as well as for flow measurement in open channels.
Product Features
1. HD LCD display, level and liquid level on the same screen.
2. Advanced chip, leading technology.
3. Intelligent sensing, easy to use.
4. Sound ranging, no contact.
5. Double coil protection, sealing more solid shock, prevent moisture.
6. Fast response.
7. Simple installation and easy operation.
8. Range can be customized.
Product Parameters

Range	5m, 10m, 15m, 20m, 30m
Accuracy	±0.5%F.S
Range Resolution	2mm
Display	LCD
Power Supply	220VAC/ 24VDC
IP Grade	IP68
material	ABS
Blind Zone	0.35m~0.6m
Installation	Flange/Thread
Ambient Temperature	-20ºC~80ºC
Pressure	Atmospheric Pressure
Output	4-20mA/RS485
Analog output	2-wire/4-wire
Other	Customizable

Installation Instructions
Application
Company Profile
Kexiang Automation(Shandong) Co., LTD is committed to becoming a first-class industrial Internet of things visual monitoring system solution integrator.
Kexiang Automation is located in the scenic coastal city of Yantai. Since its establishment, the company has been adhering to the "Customer first, Integrity-based" business philosophy, always adhere to the "Base on products, Build quality" business policy. Our IoT visual monitoring system is based on "Industry 4.0" and was born under the background of "Made in China 2025". It is a 5S industrial IoT control system integrating production process technology, equipment technology, automation technology, Internet operation technology and IT technology.
Our IoT visual monitoring system mainly uses the Cyber-Physical System technology(CPS) to digitize and intelligently optimize the supply, manufacturing and sales information in industrial production, and finally achieve a fast, effective, personalized and visual display monitoring effect.
Certifications
FAQ
Q: Are you a manufacturer or trader?
A: We are manufacturer which focuses on sensor and IoT solution provider for 10 years.
Q: How long is your delivery time?
A: It depends on the quantity. Normally it's about a week to two weeks.
Q: How to get quotation?
A: Please tell us the pipe diameter, measuring medium, flow rate, temperature, pressure, connection type and accuracy of the product you need, we will choose the most suitable product for you.
Q:Can I design our own logo or color ?
A:Sure ! we can laser mark your logo on products; OEM and ODM customization are welcomed.
Q:Can I place a small order for the first time?
A:Yes. We have no MOQ limit. Any order means your recognition of us, we believe we will have long-term cooperation.
Q: What is the warranty of your products?
A: Our warranty time is 12 months after shipment.
Q: What's the transport?
A: Express such as DHL, FedEx, TNT, UPS for freight prepaid and we can also use your own courier account to do the freight collect. For more goods we can arrange by air or by Sea.
Q: What are your terms of payment?
A: We could accept T/T, PayPal, Western Union, etc.

---
