High Speed PVC Resin Mixer Unit

US$8,500.00-15,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SRL-Z
Application Area
Engineering & Construction
Certification
CE, ISO
Condition
New
Mixing Drum Shape
Circular Groove
Stirring Type
Gravity
Working
High Speed Mixer
Mixer Type
Powder Mixer
Layout Type
Horizontal
Operating type
Cycle Operating
Transport Package
Standard Package
Specification
SRL-Z
Trademark
Sevenstars Machinery
Origin
Zhangjiagang, Jiangsu, China
HS Code
8479820090
Production Capacity
300kg/H-1000kg/H

Product Description

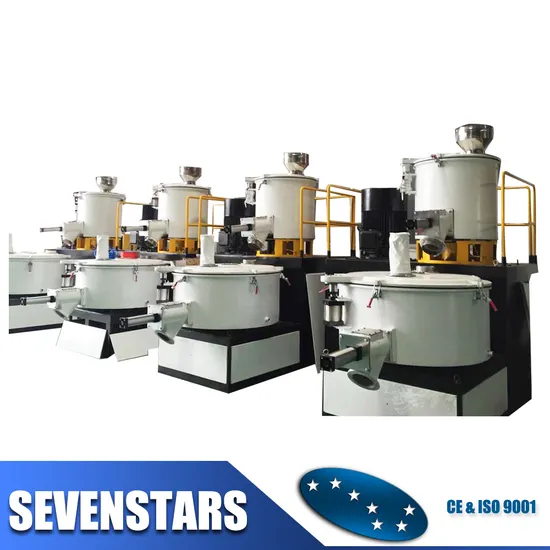

Description of PVC Mixer:
1. Mixed materials are made by negative pressure mixed principle
2. The electrical instruments are all well-known imported appliances with PLC programmable control
3. High degree of automation and speed mixing
4. The blade was made by stainless steel pressure and passed the static and dynamic balance test
5. Especially the coolant blade ued abroad advaned spiral mixing structure, the whole container has no dead angle, cooling speed and discharging clean.
6. Large volume
7. The PVC mixer is for mixing PVC powder, CACO3 and other addictives. This equipment is widely used in PVC pipe and profile production.
8. The PVC mixer is composed of high speed mixer (hot mixer), cooling mixer and control cabinet.
9. We use 6-8mm stainless steel SUS304 for the internal wall construction. It will guarantee the mixer could use for long time under the high friction.
Main Technical Parameters ( Vertical Cooler) for your reference:
Model SRL-Z100/200 SRL-Z200/500 SRL-Z300/600 SRL-Z500/1000 SRL-Z800/1600
Total volume (L) 100/200 200/500 300/600 500/1000 800/1600
Effective Volume (L) 65/130 150/320 200/360 375/650 600/1024
Rotating Speed (RPM) 650/1300-180 475/950-87 475/950-87 430/860-60 357/714-50
Mixing time (Min.) 8-10 8-10 8-12 8-10 8-12
Motor power (KW) 14/22-7.5 30/42/11 40/55/11 55/75/15 83/110/22
Overall dimension(mm) 2500*2000*2200 4580*2240*2470 4800*2640*2480 5600*3000*3100 6230*4230*4480
Weight(kg) 2500 3600 4500 5800 8300
