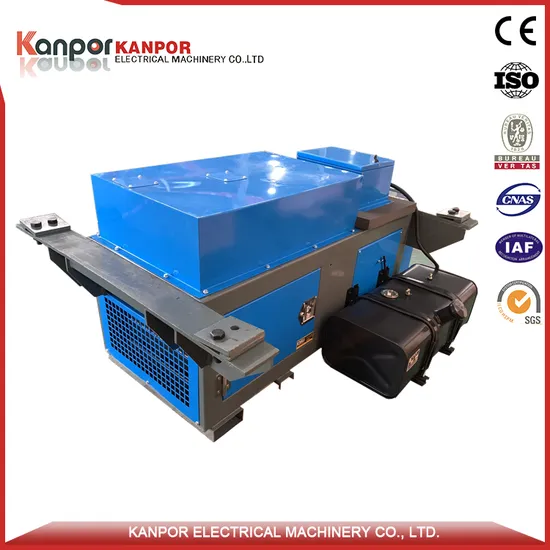

Kanpor Under-Slung Type Reefer Container Diesel Genset

Product Description

1. GENERATOR DATA
Voltage Available:
50Hz: 380-400-415V/220-230-240V;
60Hz: 220-380-416-440-480V/110-208-220-240V
Any special voltage is also available as client's request
Prime Power:
Comply with GB/T2820-97(eqv.ISO8528).
Genset can run unlimitedly under certain power range.
One hour 10% over load in every 12 running hours is allowed;
Standby Power:
standby power is the limit value of maximum output for emergency use.
It is off-oil power,overloading is prohibited
2. MAIN SPECIFICATION

Model	Prime output(kw/kva)	Standby output(kw/kva)	Engine model	Alternator model
KPYD33-U	24/30	27/33	YD490D	STF-184E
Genset Data	Size & Weight (Under-slung type)		1700*1300*850mm (580kgs)
	Frequency		60Hz
	Standard Features		Radiator 50OC max,fans are driven by belt, with safety guard/Ripple flex exhaust pipe, exhaust siphone, flange, muffler
	Voltage		460V
	Phase & Wires		Three phase
	Power Factor		COSΦ=0.8 (lagging)
	Battery		12V
	Fuel Tank		Included
	Breaker		CHINT
Engine Data	Brand & Model		Yangdong YD490D
	Cycle		4 stroke
	Engine Power (kwm)		27KW
	Air Intake Way		Natural
	Governor		Mechanical
	Cylinder		4
	Bore*Stroke (mm)		90*105
	Displacement (L)		2.672
	Fuel Consumption		223g/kw.h against prime power
	Compression Ratio		18:1
	Combustion System		Direct injection
	Speed		1800RPM
	Cooling way		Water cooled
Alternator Data	Brand & Model		Kanpor STF-184E
	Alternator Power		24KW
	Frequency & Speed		60Hz, 1800RPM
	Phase & Voltage		Three phases 460V
	System		Brushless AC Synchronous, Single bearing
	Insulation & Protection		H, IP23
	Voltage Regulator		Standard AVR
Control System	Brand & Model		Smartgen HGM420N
	Two language interface: Chinese/English
	Start or Stop Generator set manually / automatically; Open controller output can be defined as Pre-heat/Idle output.
	High Coolant temperature protection; Low Oil pressure protection. Over speed protection
	Over load protection; Generator over/under frequency protection: Generator over/under/unbalance voltage protection

3. PRODUCT FEATURES
(1).Full control panel with power indicator light and oil light.
(2).Emergency shutdown for low oil pressure and high water temperature.
(3).Large fuel tank ensure continuous running.
(4).Low noise & vibration.
(5).Compact structure.
(6).Reliable performance.
(7).Easy for installation and maintenance.
(8).50Hz and 60Hz both are available for choice

---
