US$40,000.00-50,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Mould Cavity
Single Cavity
Process Combination Type
Single-Process Mode
Mould Runner System
Hot or Cold Runner System
Mould Standard
Dme/Lkm/Hasco
Mould Design Software
Ug, Proe, Solidworks CAD, Ect
Machine Equipment
CNC,EDM,Wire Cutting Machine,Drilling Machine
Heat Treatment
Nitriding, etc
Mould Operating Mode
Professional QC
Transport Package
Wooden Crate
Origin
Hunagyan, Taizhou, China
Production Capacity
500sets/Per Year
Product Description

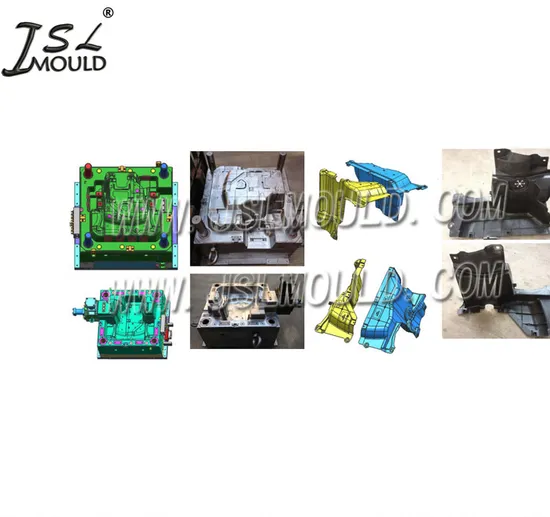

High Quality Plastic Car Engine Splash Shield Mould
1. High Polish, no sharp, no flash
2. Fully automatic ejector system
3. Cood cooling system
4. Reliable quality
5. Reasonable price
6. On time delivery
JSL Mould Quality Control
For the Q/C of mould, there are 3 steps:
1. Mould Material Q/C
- Mould Steel Checking(Hardness, flaw detection)
- Mould Standard Spare Parts Checking(hardness, size, flaw checking)
2. Mould Making Process Q/C
- design checking (part design, mould design, mould engineering drawing)
- checking each part of mould's size after machining, according to 2D drawing
- mould testing(check mould running condition)
3. Check with customer's requirement again before mould shipping.
| Product Name | High Quality Plastic Car Engine Splash Shield Mould |
| Product material | pp |
| Core&Cavity Steel | 2738 |
| Steel hardness | HRC28-33 |
| Mould Standard | DME |
| Cavity Number | 1 |
| Injection System | Side Gate- yudo hot runner 2 drops |
| Ejector System | Ejector Pin |
| Cycle Time | 60S |
| Tooling lead time | 60days |
| Mould life | 500,000 shorts |
| Quality assurance | ISO9001 |
|
| Our Advantage | 1.High quality |
| 2.Reasonable price |
| 3.On time delivery |
| 4.Good After-sale service |
| 5.Strict quality control |
| 6.All the mould are automotic. |
|
| Offer you | In-time response on letters, telephone calls or fax |
| In-time supply the quotation and mould designs |
| In-time communication on the technical points |
| In-time sending pictures for the mould machining progress and mould finishing schedule |
| In-time mould test and sample delivery |
| In-time mould delivery. |
| |
| For more information please contact us. |
>>
