High-Capacity Plastic Disposable Tableware Food Container Box Fork Making Injection Molding Machine

Product Description

High-Capacity Plastic Disposable Tableware Food Container Box Fork Making Injection Molding Machine
Product Parameters

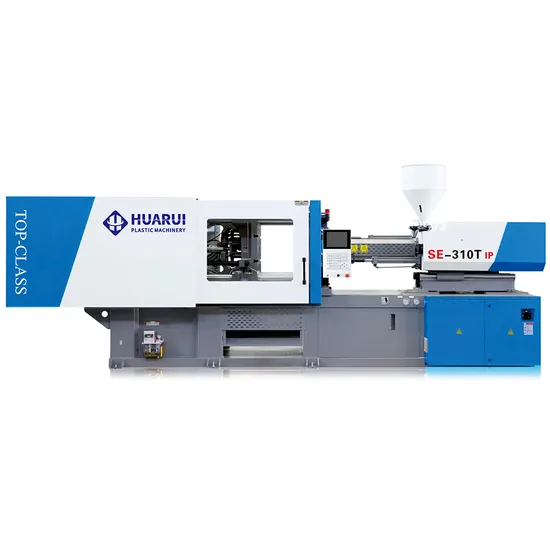

Se-310T/IP Plastic Injection Molding Machine Information
Item		Unit		A B C
Screw diameter		mm		75
Theoretical shot volume		cm³		1436
Shot weight (PET)		g		1666
Shot weight (PET)		oz		58.8
Length/Diameter ratio		L/D		25
Injection pressure		Bar		1330
Injection rate		cm³/sec		548
Max.screw speed		rpm		167
Clamping force		KN		3100
Max.daylight		mm		950*900
Open stroke		mm		610
Space Between Tie-bars		mm		670*620
Min mould dimension		mm		270
Mould thickness range		mm		670
Ejector force		KN		110
Ejector stroke		mm		170
No.of ejector pins		unit		13
Max.motor power		KW		55
System pressure		MPa		175
Heater input power		KW		34
Oil filling capacity		L		400
Machine size		M		7.0*1.6*2.3
Net weight		KG		10500

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
