1054-1b 12V 24V Normally Closed Pull Type Small Electric Electromagnetic Solenoid Lock with Override Function

Product Description

PRODUCT FEATURES

JSO-1054-1B 12 24 volt Normally Closed Pull Type Small Electric Electromagnetic Solenoid Lock
With override function (manually release function).
1. Power supply: 12V or 24VDC, or customized
2. Stroke: 10.0mm
3. Duty cycle: 10% - 100%, customized
4. Function: Connecting to power, lock tongue will pull in, when power is off, tongue will return back by spring
5. Application: gym cabinet, vending Machine, storage cabinet, sharing bicycle etc.

TECHINCAL DATA

Products Data Sheet
Product name:	Push Pull Solenoid	Insulation Class:	B
Model:	JSO-1054-1B	Hi-Pot test:	AC750V/2S
Frame Size:	L54xW42xH28	Service Life:	>500,000 Times
Stroke:	10.0 mm	Lead time:	5 days if have stock
Action Form:	Pull	Sample Order:	Acceptable
Voltage:	DC 12v/24v or customzied	MOQ:	5 PCS
Duty Cycle:	10%~100%	Warranty:	2 Year
Install Thread size:	M3	Origin:	Ningbo, Zhejiang
N.W.:	158 g	Surface:	Electroplating
Certificate:	CE/ROHS	Material:	steel & enameled wire

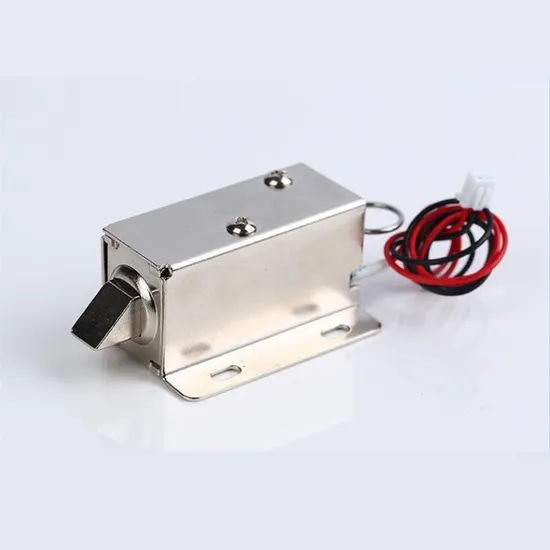

PRODUCT PHOTOS

PRODUCT SERIES

FIVE STAR REVIEW

CERTIFICATE

OUR WORKSHOP

COOPERATION CLIENTS

WIDELY APPLICATOIN

FAQ: Push pull solenoid
Q: Are you trading company or manufacturer? And where is your factory located?
A: We are factory. Our factory is located in Ningbo City, 2 hours from Shanghai Airport by car.
Q: Do you have CE approved?
A: Yes, we have CE and ROHS certificate
Q: How to choose a suitable electromagnet quickly?
A: Please provided us following parameters:
Act form: pull or push type?
Frame Dimension?
Stroke,
Duty cycle,
Cable length and connector,
-------------------------------
For example: You can say I want purchase open frame solenoid as below:
Open frame solenoid
Action Form: Pull type
Frame Size: L37xW26xH20
Stroke: 10 mm
Beginning Force: 100g
Voltage: DC 12V,2A
Duty Cycle: 10%, Energized time: 6S, de-energized time: 60s
Lead Wire: side out 10 cm, with XH2.54 male connector.
Install Thread size: M3
---------------------------------------
Q: How long is your delivery time?
A: Samples ready for delivery in 3 days if the goods are in stock, or in 7-10 days for for customized product. It is according to quantity.
Normally, you will get our samples in 7-10 days after payment.
Q: Can you customized electromagnet?
A: Yes, you are welcome.
Q: Can I print my Brand/Logo on the product?
A: Yes, free of charge.
We are looking forward to your inquiry.
