Automatic PP Bottle Blowing and Molding Machine with CE and ISO

Product Description

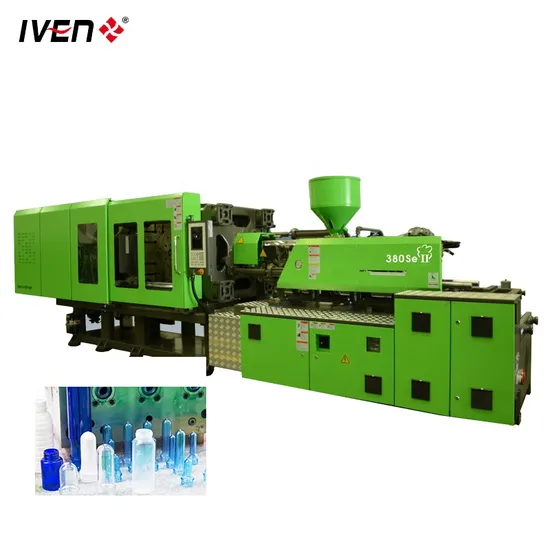

Automatic PP Bottle Blowing and Molding Machine with CE and ISO


Vertical pet preform injection moulding machine price to make plastic bottles can be used for glucose,antibiotics and other fluids at filling and stoppering in room temperature and high temperature,can also be used for filling and stoppering for amino acids,fat emulsion,oral liquid,nutrition liquid and biological agents.

Performance Characteristics
1.The filling parts adopts the Germany valve filling,high accurate,can achieve no bottle no filling.
2.During filling process,no mandatory friction of mechanical parts,not produce particulate pollution,in line with GMP requirements.
3.Adopts the quick equipped filling head design,the filling heads is easy in disassembly and assembly(Only need to loose the two M6 bolts )
4.Use sensitive level gauge in the filling barrel,and make the level gauge away from the liquid inlet,to ensure the inlet tube when no effect on the level gauge when filling liquid.The rotation speed of the machine is low,running smooth and stable,thus ensuring smooth liquid level in the filling barrel and ensures the stability of the filling pressure;
5.With easy operation,all settings can be set directly from man-machine interface.Electronic control system adopts advanced PLC technology and microcomputer tuner to adjust speed.The output can be adjusted to variable speed within rated capacity,which is convenient,quite,and safe.
6.With the CIP/SIP units,easy for cleaning and adjustments,after filling can thoroughly do the cleaning and disinfecting work.
7.By vacuum stoppering and mechanical positioning,only when the stoppers is in the accurate place it can go to the stoppering station,high qualified rate.
8.Screw of bottle adopts mobile structure,can easily replace different screws by only removing and installing 2 M8 × 25 bolts,easy to switch among infusion bottles of different specifications.
9.To press immediately after filling,reducing possible pollution caused by long-distance delivery.

Product Parameters

Name	Specification
Screw diameter	Mm	40
Injection capacity	G	207
Machine weight	Kg	5500
Max. Injection speed	Mm/s	83.8
Screw stroke	Mm	165
Screw rotation speed	R/min	0-180
Injection clamping force	Kn	400
Blow clamping force	Kn	80
Blow air pressure	Kgf/cm2	35
Working pressure	Kgf/cm2	8
Oil pump motor power	Kw	18.5
Heating power (not includes mould)	Kw	13
Pressure of oil hydraulic system	Mpa	16
Oil tank volume	L	400
Overall size(l*w*h)	M	3.75*1.43*3.15

Company Profile
IVEN Can Do !
IVEN provides integrated engineering solution for worldwide pharmaceutical and medical factory include the clean room, auto-control and monitoring system, pharmaceutical water treatment system, solution preparing and conveying system, filling and packing system, automatic logistics system, quality control system and central laboratory and etc. According to the pharmaceutical industry's regulatory requirements of different countries and customer's individual demand, IVEN carefully customizes engineering solutions of turnkey projects and helps customers to win the target markets, IVEN creates value to customers.
Turnkey Project for IV Solution Plant from A to Z
• Project Design
• Pharmaceutical Water Treatment
• Solution Preparation
• IV Solution Production Line
• Sterilization
• Inspections Packing
• Clean Room & HVAC
• Stability Chamber
• Laboratory Instruments
• Utilities
• Documentation & Qualification
• Installation, Commissioning, Training
• Service
