Rapid Material Processing High-Speed Double Shaft Shredder

Product Description

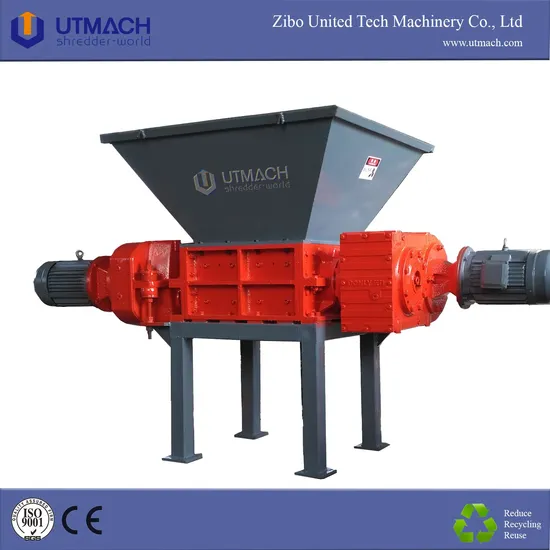

D series Double Shaft Shredder Product Description
Introduction >>
D series double shaft shredder has low speed, high torque, large shear force, strong crushing power, better shredding effect, etc.The equipment shredding processing stability, low noise, can meet all kinds of solid waste recycling and recycling of wastetreatment. solid waste recycling, plastic recycling, tire recycling,
paper making industry, etc.
D series double shaft shredde has two rotors built into the machine that rotate at low speeds, high torque and low noise. With the function of PLC microcomputer control system, it is possible to control automatically start, stop. Automatic reverse sensors to protect the machine against over loading and jamming.

Advantage >>
• D series has two rotors built into the machine that rotate at low speeds, high torque and low noise. With the function of PLC microcomputer control system, it is possible to control automatically start, stop. Automatic reverse sensors to protect the machine against over loading and jamming
• Motor + the Rotor is drived by the reducer, get the effect of slow speed and high torque shredding
• Four enclosed sealing bearing protection design, waterproof and dustproof, so the life of bearing can be prolonged
• The wearing blade can be repaired by advanced cutting tool coating and welding technology. The blade can be repeated use, reduce the maintenance costs
• Separated design to the shredding chamber, the frame can be easily discharged the whole Shaft (Rotor, Blade, Bearing, Sealed system)
• Blade is spiral arrangement, get effective shredding
• Adopt the Hexagon to the blade inner hole and the main rotor, ensuring the blade stability and get equal force • To ensure durability and flexibility, we can offer the different kinds of Blades according to different materials
Applications >>

Suitable for shredding material such as hard disk, small engineering plastic, home appliances, plastic lump switches and sockets and steel barrel etc.

Model	D2012	D1630	D2040	D2850	D2860	D2880	D2890
Cutting Chamber size (mm)	435×130	325×300	435×400	580×500	580×600	580×800	580×900
Rotor Blade Diameter (mm)	200	160	200	285	285	285	285
Rotor Ratate Speed (r/min)	5-10	10-20	10-20	10-20	10-21	10-20	10-20
Rotor Blade Quantity (PCS)	3	20	20	20	20	26	30
Rotor Blade Thickness (mm)	40	15	20	25	30	30	30
Rotor Motor Power (KW)	1.5+1.5/3	3+3/5.5	4+4/7.5	5.5+5.5/11	7.5+7.5/15	11+11/22	15+15/30
Net Weight (kgs)	800	1000	1200	1650	1800	2500	2500

Model	D3280	D32100	D35120	D35150	D35150	D40100
Cutting Chamber size (mm)	650×800	650×1000	680×1200	680×1500	680×1500	825×1000
Rotor Blade Diameter (mm)	320	320	350	350	350	400
Rotor Ratate Speed (r/min)	10-15	10-15	10-15	10-15	10-15	10-15
Rotor Blade Quantity (PCS)	20	25	30	38	38	20
Rotor Blade Thickness (mm)	40	40	40	40	40	50
Rotor Motor Power (KW)	15+15/30	18.5+18.5/37	22+22	22+22	30+30	30+30
Net Weight (kgs)	4000	5200	6000	6500	7000	8000

Model	D40120	D40150	D40180	D43120	D43150	D43180
Cutting Chamber size (mm)	825×1200	825x1500	825×1800	900×1200	900×1500	900×1800
Rotor Blade Diameter (mm)	400	40000	400	430	430	430
Rotor Ratate Speed (r/min)	10-15	10-15	10-15	10-15	10-15	10-15
Rotor Blade Quantity (PCS)	24	30	36	24	30	36
Rotor Blade Thickness (mm)	50	50	50	50	50	50
Rotor Motor Power (KW)	37+37	45+45	55+55	45+45	55+55	75+75
Net Weight (kgs)	8000	10000	12000	8500	11000	13500

Model	D52120	D52150	D52180	D62140	D62180	D62210
Cutting Chamber size (mm)	1100×1200	1100×1500	1100×1800	1300×1400	1300×1820	1300×2100
Rotor Blade Diameter (mm)	520	520	520	620	620	620
Rotor Ratate Speed (r/min)	10-15	10-15	10-15	10-15	10-15	10-15
Rotor Blade Quantity (PCS)	20	30	30	20	26	30
Rotor Blade Thickness (mm)	60	50	60	70	70	70
Rotor Motor Power (KW)	75+75	75+75	75+75	90+90	90+90	90+90
Net Weight (kgs)	12000	14000	16000	15000	20000	24000

Note:
1. The voltage and motor power supply can be selected by the customer's specific requirements.
2. The shredder capacity can be influenced by the material composition and output size. We provide Customized Machines.
The above specifications are only for reference and subject to change without prior notice, please confirm with our sales representative when making order.

---
