China Factory B20 Swiss CNC Dual Spindle Turning Lathe Machine 2024 Model

US$30,500.00-37,900.00 1 Piece (MOQ)

Basic Info.

Model NO.
B20
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.001
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001, ISO 14001
Condition
New
CNC System
Lnc T6850
Max Bar Diameter
20mm
Guide Bushing
Fixed Guide,Non-Guide,Rotary Guide Bush
Types
5 Axis CNC Swiss Lathe
Travel
X1,Y1,Z1,X2,Y2,Z2
Maximum Diameter
20mm
Main Spindle Through-Hole Diameter
21mm
Main Spindle Center Height From Ground
1050mm
Maximum Clamoing Diameter
20mm
Guide Rail Form
Linear Guide Rail
Cooling System
Oil Cooling
Transport Package
Standard Wooden Case
Specification
2560*1440*2000
Trademark
Baiyu BYSK
Origin
Anhui Province, China
HS Code
8458110090
Production Capacity
1000units/Year

Packaging & Delivery

Package Size
2560.00cm * 1440.00cm * 2000.00cm
Package Gross Weight
2100.000kg

Product Description

Product Description
Introducing the 2024 Model of our Dual Spindle Swiss CNC Turning Bench Lathe Machine: the epitome of precision and efficiency.

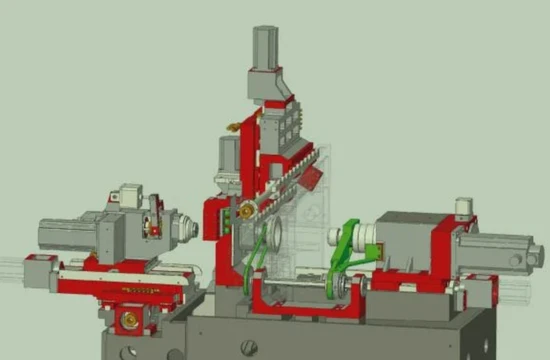

-The B20 model is engineered as a 5-axis sliding headstock lathe, equipped with dual spindles for unparalleled versatility.
-Both the main spindle and the sub-spindle can operate simultaneously, significantly boosting productivity.
-Expertly designed to handle profile diameters up to ≤ Φ 20mm with remarkable accuracy.
-Perfectly tailored for large-scale, multi-variety, and high-precision machining of slender shaft parts that boast a substantial length-to-diameter ratio, as well as small, uniquely shaped components.

Product Parameters
Power Rated voltage Three-phase AC 380V
Rated frequency 50HZ
Total Input Power 15kW
CNC System LNC T6850
Minimum Set Unit 0.001mm
X Axis Pulse Equivalent 0.0005mm
Z Axis Pulse Equivalent 0.001mm
Cutting Speed 1--4000mm/min
X Axis Rapid Feed Speed 28000mm/min
Y Axis Rapid Feed Speed 28000mm/min
Z Axis Rapid Feed Speed 28000mm/min
Main Spindle Maximum Bar Diameter Φ20mm
Main Spindle Through-hole Diameter Φ21mm
Main Spindle Center Height from Ground 1050mm
Main Spindle Speed 0-5000r/min
Main Spindle Motor Power 5kW
Sub Spindle Maximum Clamping Diameter Φ20mm
Sub Spindle Speed 0-5000r/min
Sub Spindle Motor Power 2kW
Travel X1 Axis Travel 140mm(Diameter)
Y1 Axis Travel 300mm
Z1 Axis Travel 330mm
X Axis Servo Motor Power 0.75kW
Y Axis Servo Motor Power 1kW
Z Axis Servo Motor Power 1kW
Guide Rail Form Linear Guide Rail

Travel X2 Axis Travel 500mm(Diameter)
Z2 Axis Travel 200mm
X2 Axis Servo Motor Power 1kW
Z2 Axis Servo Motor Power 1kW
Cooling System Cutting Oil Motor Power 0.48kW
Cooling Box Capacity 250L
Lubrication System Motor Power 35W
Capacity 2L
Main Spindle Tools 12*12Square Tool+∮20Hole Cutter 6pcs+4pcs
Sub Spindle Tools ∮16Hole Cutter 1pc
∮20Hole Cutter 1pc
ER16 Tool Rest 2pcs
12*12Square Tool 1pc
Machine Size Length * Width * Height 2560*1440*2000
Machine Weight 2100KG

B20 Configurations
Item Specification Origins
CNC System LNC T6850 Taiwan
Main Spindle Baoyu BYSK
Main Spindle Motor 5kW Absolute Value Servo Motor Inovance+ Lines
Sub Spindle Motor 2kW Absolute Value Servo Motor Inovance+ Lines
X1 Axis Motor 0.75kW Absolute Value Servo Motor Inovance+ Lines
Y1 Axis Motor 1kW Absolute Value Servo Motor Inovance+ Lines
Z1 Axis Motor 1kW Absolute Value Servo Motor Inovance+ Lines
X2 Axis Motor 1kW Absolute Value Servo Motor Inovance+ Lines
Z2 Axis Motor 1kW Absolute Value Servo Motor Inovance+ Lines
Screw Rod Taiwan HIWIN/PMI
Guide Rail Taiwan HIWIN/THK

Optional Configurations
Main Spindle Plus Side Power Head Chuck(ER11+ER16) 2pcs+2pcs
Power 0.75kW
Speed of Rotation 5000r/min
Sub Spindle Plus End Face Power Head Chuck(ER16) 4pcs
Power 0.75kW
Speed of Rotation 5000r/min
Servo Rotating Center Frame Z-axis travel after adding rotating center frame 210mm
Power 0.75kW
