2500mm Duplex Corrugated Kraft Test Liner

Product Description

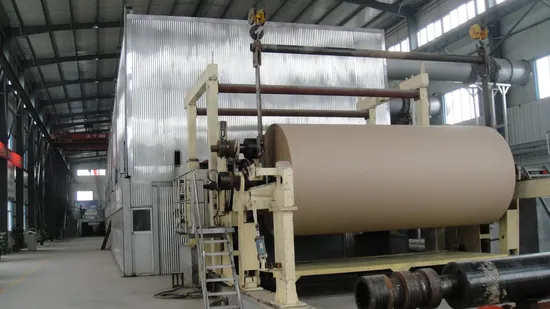

2500mm High Speed Fluting Duplex Corrugated Kraft Test Liner Packing Tolilet Paper Making Machine Product Description Description: Kraft Paper Machine is a production line that use waste books paper, wood pulp board, waste paper box, old corrugated carton, wheat straw pulp, wood etc. to produce Kraft paper, test liner paper, corrugated paper, fluting paper, cardboard paper. Corrugated Paper Making Machine Is Mainly Used as The Package Material, High Strength, Brown Color. Full Bleached or The Half Bleached Kraf Paper Pulp Is Light Brown Color , Cream Color, or The White Color. Most Are Jumbo Rolls, Some Are Sheets. The Kraft Paper Is Generally Made Into The Cement Paper Bags, Envolope, and Cables Protective Paper. Good Quality Waste Carton Recycle Corrugated Paper Making Machine.
Technical requirement

Paper type	fluting and test liner paper
Paper weight	85-100g / m2
Proportion of pulp	determined and adjusted by the user according to the product
Output	120t / 24h
Wire width (nominal)	2950mm
Paper roll width	2560mm
Finished paper width	2500mm
Gauge	3600mm (subject to final design)
Designed speed: 400 m / min	400 m / min
Balance speed	450 m / min
Transmission speed	400 m / min
Rolling roller balancing speed	1200m / min
Working speed	300-400 m / min
Out of wire section	20-22% (± 1%)
After press section	44-46% (± 1%)
Before sizing	92%
Paper roll machine	92%
Arrangement of the paper machine	Stand at the roll machine and look at the wire section, the drive is on the left (right) hand side.
Paper machine layout form	Single layer layout

Raw material
Use Wheat Straw pulp, Rice Straw, Waste Books Paper, Wood Chips, Waste Paper, Bagasse, Wood pulp board, waste paper to produce Kraft paper, test liner paper, corrugated paper, fluting paper, cardboard paper.
Main Equipment
Pulp Making Equipments
High contentration hydrapulper, Vibrating screen, Pressure Screen,Double disc pulp refiner, Pulp pump, Low concertration cleaner,Impeller, High concentration cleaner, High speed washer, Decker thickener, Fiber separator, Rejector separator
Paper Making Equipments
Headbox, Cylinder mold, Cylinder vat, Touch roll, Press roll, Leading roll, Dryer, Sizing machine, Calender machine, Winding machine, Rewinder, Foundation frame
Company Profile
Qinyang City Friends Machinery Equipment Co., Ltd. founded in May, 1990. We are the factory of specializing in the production of paper making machine, pulping equipment and paper processing equipment. These years we committed to the development of high-quality, high efficiency, energy saving, environmental protection new products, service in paper making machinery industry, is a collection of scientific research, production in one of technology enterprise.

More than 20 years, the rapid development of enterprise, Production capability and production level rises ceaselessly, scale of production expands with each passing day, Our products have passed Quality system ISO9001:2000, CE and exported more than 30 countries, such as Russia, India, Syria, Pakistan, Egypt, Middle East, Africa, and South America etc. Our high quality and our perfect service has reserved consumer's praise and more orders.
Our Services & Strength
(1) professional engineer team with 30 years experience;
(2) we can supply turn-key solution without any trouble;
(3) we have strict quality control system and ensure there is no unqualified product;
(4) professional installation technician and clear technical training for your workers;
(5) strict recalling system: if any problem of machine, we will recall it and change a new one for free;
Certificate
Our service
Pre-sale Service
--24 hours phone, email, trade manager online services;
--We will supply the detailed project report, detailed general drawing, detailed flow process design, detailed layout factory drawing for you until meet your requirement;
--we welcome you to come to our paper making machine factory and paper mill factory to have a look and check;
--We will tell you all the necessary cost when set up a paper mill factory;
--We will answer you all the questions within 24 hours;
--We will send you various quality paper samples made by our paper machine for free;
--We can supply turn key-project service.
On-purchase Service
--We will accompany you to check all the equipment made by us, and help you to make the plan of installation;
--We will supply paper machine assembly drawing, the foundation and foundation load diagram, transmission diagram, formal installation drawing, use and installation instructions and a full set of technical data after signing the contract.
After-sales Service
--We will delivery the machine as soon as possible according to your requirement, within 50 days;
--We will send rich practiced experience engineers to you to install and test the machine and train your worker for free;
--We will give you one year guarantee time after the machine can run well;
--After one year, we can guide and help you to maintain the machines;
--Every 2 years, we can help to overhaul the complete machines for free;
--We will send you spare part in lower price.
FAQ
1. What kind of paper machine your factory produce?
Our factory mainly produce flowing machine:
A. Kraft paper machine which can produce carton box paper, corrugated paper, craft paper, testliner paper, carton board paper etc.
B. Culture paper machine which can produce white paper jumbo roll, include A4, A3 paper, copy paper, printing paper, newspaper, offset paper etc.
C. Toilet Paper Machine which can produce toilet paper, tissue paper jumbo roll
D. Paper processing machine. the jumbo roll paper can be processed all kinds of paper, such as , A4, A3paper, handkerchief paper, towel paper and kitchen using paper
2. Can you make paper mill design for us?
Yes, we have a technician team of 116 engineers and 12 experts with more than 20years experience.
3. How about your machine quality, we are worry about the quality?
FRD is a mature brand in china, more than 30 years manufacuturing experience of different kinds of paper machines. We strictly manufacture and manage according to IOS9001:2008 System, and can match all the CE standard or more strict standard. our paper machine is running well in more than 20 countries.
4. What should I have to know if I want to get the quotation?
a. What kind of raw material you will use(main important)
b. The capacity you want produce per day(main important)
c. The paper weight you require.
d. The paper width you require.
5. Your machine price is high, is there any discount?
We always provide high quality paper machines, we are paying more attention on oversea market, because of communication time after sales, and also it need very long time to send new parts. our paper machines have enough quality standard to make sure the machine can work more than the real warranty period. our marketing style is quality=price and price=quality, the price will be acceptable for our clients and durable for our machines. anyhow, when we will negotiate the price with each other during our meeting in factory, and get a good satisfaction.
6. Could your engineer can teach and train our workers and stay in our factory for long time?
Yes, we have 116 technical installation engineer team, they can train and teach your worker to operate paper machine, but you should pay them salary.

---
