Efficient 350L Plastic Injection Molding Machine with 16MPa Pressure

US$15,000.00 1 set (MOQ)

Basic Info.

Model NO.
UP-140T
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Heating Power
16kw
Machine Weight
6.3t
Tank Volume
350L
System Pressure
16MPa
Transport Package
Film Packing
Specification
5.8*1.55*2.15
Trademark
UP
Origin
China
HS Code
8474809090
Production Capacity
500sets Per Year

Product Description

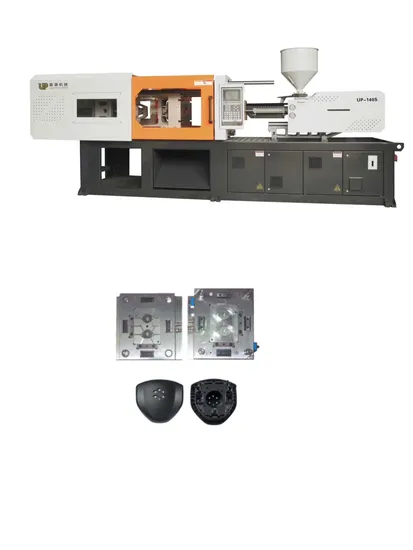

China Servo Injection Molding Machine
Ningbo Union Power Machinery Co., Ltd.
Product Description:
Our China servo injection molding machine offers advanced features to enhance your manufacturing process:
Modulus of Capacitance: Includes position, size, and maximum allowable modulus of capacitance for the guide pillar (Green column) with minimum closure thickness.
Nozzle Parameters: Specifies spherical diameter, aperture, outer diameter, maximum extension length, and positioning aperture for precise molding.
Code Mold Parameters: Defines mold hole and slot size for efficient production.
Ejection Mechanism: Provides ejection point position, ejector rod diameter, and optional ejection force and stroke details.
Mold Opening Stroke: Indicates opening stroke and maximum distance for optimal mold operation.
Experience high-quality performance and precision with our standard injection molding machine. Upgrade your production capabilities with our reliable equipment.
Technical Parameters Model UP-140T
Injection Unit A B C
Screw diameter (mm) 38 42 45
Shot Volume (cm3) 215 260 302
Injection weight (g) 194 237 272
injection pressure (Mpa) 186 152 132
Screw speed (rmp) 215
Clamping Unit
Clamping force (KN) 1400
Open stroke (mm) 380
Max Mold height (mm) 450
Min Mold height (mm) 135
Space between tie bars(mm) 420*420
Ejector force (KN) 46
Ejector stroke (mm) 120
Others
Pump pressure (Mpa) 16
Motor/driving power (KW) 13(14)
Heating power (KW) 8.2
Machine dimension (M) 4.2*1.2*1.9
Machine weight (T) 3.4
Oiltank cubage (L) 190
