Agriculture Machinery Picking Machinery Groundnut Picking Harvester Peanut Picking Machine

US$16,500.00
1-4 Pieces
US$16,000.00
5-9 Pieces
US$15,500.00
10-49 Pieces
US$15,000.00
50+ Pieces

Basic Info.

Model NO.
4HBL-2
Application
Peanut
Power Source
Diesel
Harvest method
Uprooted
Drive Type
Gear Drive
Transmission
Soft Shaft
Portable Harvester Type
Combine
Certification
ISO9001:2008
Color
Red
Condition
New
Application Field
Agriculture
Warranty
1 Year
Name
Peanut Combine Harvester
Row Number
2
Power
46HP
Weight
2400kg
Work Width
600mm
Row Space
70-90cm
Dimension
5000*2350*2350mm
MOQ
1
Transport Package
Nude
Specification
5000*2350*2350mm
Trademark
no
Origin
China
HS Code
7880090
Production Capacity
50000

Product Description

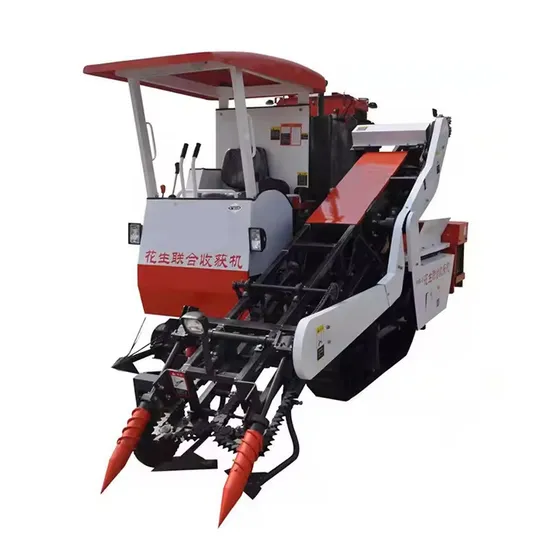

Agriculture Machinery Picking Machinery Groundnut Picking Harvester Peanut Picking Machine
'
This machine is mainly by the chassis, driving system and points shocks, and set grain device, device mining equipment, gripping delivery mechanism, the soil device, pick fruit system,choose system, set fruit system after operation system, solvable component, homework components and chassis overall become lateral configuration.
The peanut harvest machine integrates the functions of seedling support, soil excavation, clamping and conveying, soil shaking, fruit picking, screening, cleaning and collection.
2. It adopts crawler walking, simple operation, flexible steering, high power and light pressure on the ground.
3. Hydraulic high-position automatic fruit unloading. The maximum unloading height is 1.45 meters, which makes the harvesting more efficient.
4. The combination of deflection sieve, vortex fan, chain roller conveyor makes the fruit cleaner.
5. Reasonable console design making operation easier.
Model 4HBL-2
Matched power 33.8kw (46hp)
Harvesting rows 2
Row spacing 70-90cm
Working speed 1.5-2km/h
Efficiency 0.13-0.2hm2/h
Lose rate <3%
Max. working depth 200mm
Dimension 5000×2350×2350mm
Weight 2400kg
Work width 600mm
track 90*46*280
Wheel base 1150mm
Suitable ridge space 350-1000mm
Ridge width 650mm
