| Ethernet | |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3z Gigabit Ethernet over Fiber Optic | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE 802.3at Power over Ethernet Plus | |
| IEEE 802.3af Power over Ethernet | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Size: | 2M |
| Switch Fabric: | 20Gbps |
| Processing Type: | Store-and-Forward |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 4K MAC Addresses |
| Interface | |
| Copper Ports: | 8 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| PoE Injector Ports | 8 ports with 802.3at PoE+ injector function (Ports 1 to 8) |
| SFP Ports: | 2 x 1000BASE-SX/LX/BX SFP interfaces (Ports 9 to 10) |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Output | IEEE 802.3af Standard - Per port 48V~51V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard - Per port 51V~54V DC (depending on the power supply), max. 30 watts |
| PoE Power Budget | 240W maximum @54V DC 120W maximum@24V DC 60W maximum@12V DC |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | 907,476 hours @ Telcordia SR-332 Standard |
| Heat Dissipation: | 34 BTU/h (non-PoE mode) 853 BTU/h (with 240W PoE load) |
| Cooling: | Passive Cooling, Fanless Design |
| Noise Level: | 0 dBA |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC, Redundant Power (Terminal Block) |
| Connector: | 1 removable 6-contact terminal blocks Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm |
| Protection: | Overload Current Protection, Reverse Polarity Protection |
| Power Consumption: | 240W Max. (PoE in use, 48VDC input) |
| 15W Max. (PoE not in use) | |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | Power1, Power2 Status |
| RJ45: | Link/Act: connect-always; data exchange-twinkle Speed light: 1000Mbps-always; 10/100Mbps-off |
| Fiber: | Link/Act: connect-always; data exchange-twinkle |
| Dimensions (LxWxH): | 138 x 108 x 49 mm |
| Weight: | 680g |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Regulatory Approvals | |
| EMI | FCC Part15 Subpart B Class A, EN 55022 Class A |
| EMS | EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11 |
| Collision | IEC60068-2-27 |
| Drop | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Safety grade | EN60950-1 |
| Model | Description |

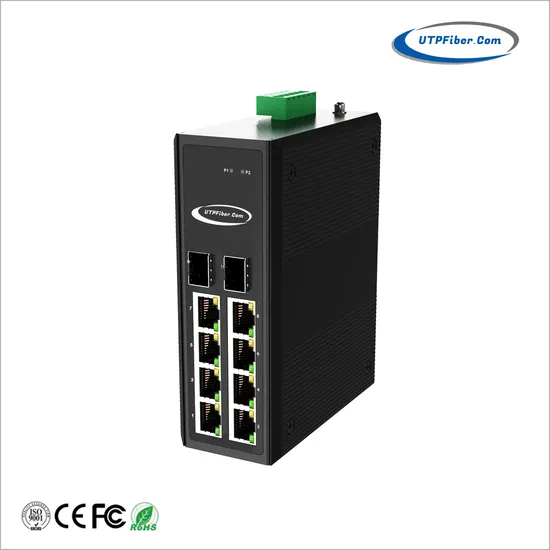

| UF-IES208GP-SFP-12V | Industrial 8-port 10/100/1000BASE-T 802.3at PoE+2-port 100/1000X SFP Ethernet Switch w/ 12~48V Booster, PoE Power budget: 60W@12VDC, 120W@24VDC, 240W@48VDC |
| Mounting Options | DIN-Rail or Wall Mount Installation |
| Power Options | DIN-Rail Power Supply. Open Wire for Terminal Block. |
| Power Supply is to be purchased separately. |
