High Efficiency Wood Drum Chipper; Shredder Machine with High Capacity;

Product Description

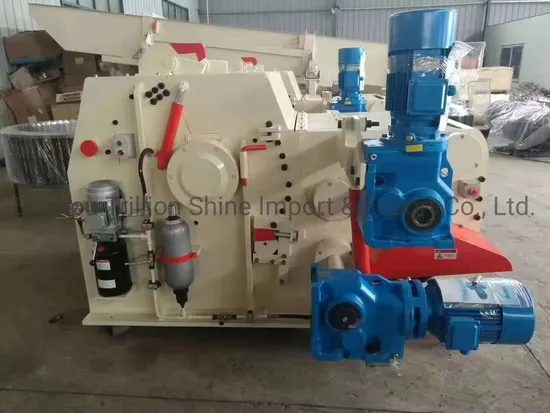

Wood drum chipper with high capacity Introduction The wood chipper is used for processing wood logs or tree branches into 20mm-40mm wood chips for various wood products industries and plants. Known as wood cutting machine, it belongs to wood processing equipment series. Wood chipper is widely used in particleboard mill, medium or high-density fiberboard factory, biomass power plant, wood pellet plants and other industrial production factories.
Product ApplicationThe drum wood chipper is a special device of producing wood chips. It is widely used in stock workshop section of industrial manufacture, for example, the flakeboard, fibre board, building board, straw power plant, etc. drum wood log shredder chipper machine is a kind of special machine to slice the wood for the production of high-quality wood chips.It is a kind of advanced crushing machine based on the advantages of many other crushers. It is developed by using the theories of lashing, shearing, impacting, grinding. Raw MaterialsThe Raw materials is wood logs, timber harvesting, processing residues(such as branches, twigs,planks,logs cores,waste veneer,ect...)It can also be used for cutting non-wood materials(such as sugarcane,reed,bamboo,etc...).
Finished ProductsThe drum chipper series products are equipment for the production of wood chips. This product is used in particle board factories, medium and high-density fiberboard factories, straw factories, biological power plants, wood chip factories and other industries and manufacturers. . This product has good structure, high quality of cutting material, light adaptability of raw materials, and convenient operation and maintenance. The main raw materials for cutting are small-diameter wood, timber harvesting, and processing residues (such as branches, branches, slabs, slats, round wood cores, waste veneers, etc.), and can also be used to cut non-wood materials (such as sugarcane, reeds, bamboo Wait).
Technical specification

Model	BX216	BX218	BX218D	BX2110	BX2113A	BX2113B	BX2113C	BX2116	BX2120
Knife rotor diameter ddddddddddiaddiameter mm	650	800	800	1000	1300	1300	1300	1600	2000
Number of rotor knives(PCS.)	2	2	2	2*2	3	3*2	4*2	4*2	3*2
Feed opening (H ×W)mm	180*500	225*680	240*780	330*1050	400*700	400*1050	400*1250	600*1250	850*1250
Knife rotor speed(r/min)	590	650	650	550	420	4789	378/340	350	295
Feed Speed(m/min)	37.2	37	38	33	38	43	36/42	42	31
Max Dim.of log	120	160	160	190	230	2403	250	310	370
Length of wood chips(mm)	30	30	30	30	30	30	24/32	30	35
Capacity(m3/hour)	10	15-20	38	75	60-70	100	130	180	200
Main Motor Power(KW)	55	110	132	220	250	315	450	710	1000
Feed rotor Motor Power(KW)	3*2	4*2	5.5*2	7.5*2	7.5*2	11*2	15*2	18.5*2	22*2
Oil Pump Power(KW)	0.55 Pump	0.55	0.55	4	4	4	4	4	4
Weight(KG)	4070	7000	8000	12500	13840	16700	18000	32000	55000
Overall dimensions (L ×W ×H)mm	4348*2056*1258	4670*2150*1500	4670*2250*1515	2850*2799*1497	3670*2517*2050	3485*2350*1828	5484*5400*1862	4360*3150*2200	7970*7150*2750

Can the final size of wood chips be adjusted?
Yes. It can be adjusted according to customer's request.

---
