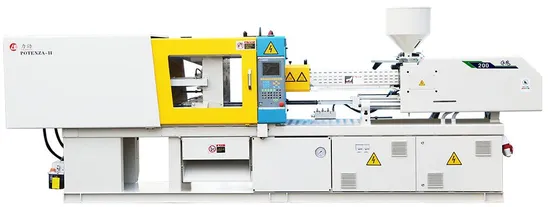

PT-II 200 Plastic Injection Molding Machine

Product Description

Brief Introduction LK group specializes in the design manufacture and sales of die casting machine, high precision injection molding machine, cnc machine center and industrial integrated control system.
Our market share of die casting machine is over 60%, the injection molding machie ranks among the top 5 in China. We have 12 companies worldwide, 10 in domestic China, 1 in Taiwan and 1 accquired company in Italy. Our injection molding machine centers are Zhongshan and Ningbo in Zhejiang. LK's Potenza is one of our best-selling models utilizing proven technology. Potenza is an excellent injection molding machine from 80Ton to 1000Ton. Equipped with sturdy toggle clamping system, agile injection unit, efficient hydraulic system, Potenza represents pride of workmanship.
We have excellent after-sales service.There are over 60 sales and service centers in the world, and our high-quality after-sales service and 24-hour prompt response system to provide customs all-round fully coverage customers service.
Key features
1. German gear pump with permanent magnet servo motor
2. Professional controller system
3. Sturdy toggle clamp system with advanced FEA engineering design
4. Excellent kinetic motion characteristic
Use of application
Power Tool, Personal Care, Toys, Electrical Appliances, Body Parts, Steering Wheels, Small Packaging, Daily product
Main Performance Feature
1. Template using finite element analysis design, structure, technology is more reasonable, good rigidity, high strength.
2. High-performance servo motor, fast response, stable performance servo power system, equipped with high precision sensitive pressure feedback device, stroke closed-loop precision control.
3. Machine cover plate adopts new design, beautiful and generous; Nozzle protection cover, double protection cover for melt bucket, safe operation.
4. Pressure relief oil pump and volume distribution lubrication system, fixed point quantitative oil supply, to ensure full lubrication of each moving part, the machine runs smoothly and parts long service life.
5. All parts of the clamping column frame are molded by CNC with high precision. Hinge edge, steel department adopt Japanese alloy material, special heat treatment, high wear resistance, long service life, hydraulic transmission gear adjustment mechanism, stable and accurate adjustment.
Technical Parameter List

	ITEM	UNIT	PT200
Shooting Part	Shot Weight(ps)	g	318	393	475
	Screw Diameter	mm	45	50	55
	Injection Volume	cm^3	350	432	522
	Injection Pressure	Mpa	230	186	154
	Screw L/D Ratio	L/D	24	22	20
	Injection Rate	cm^3/s	162	200	243
	Plasticizing Capacity(ps)	kg/hr	72	93	108
	Screw Speed	r/min	175
	Hopper Capacity	L	60
Clamping Part	Locking Force	KN	2000
	Die Height(Min-Max)	mm	200-530
	Opening Stroke	mm	460
	Space Between Tie Bars	mm	510*510
	Ejector Stroke	mm	140
	Ejector Force	KN	67
Others	Motor Capacity	KW	22
	Max. Working Pressure	Mpa	17.5
	Oil Tank Capacity	L	240
	Heating Capacity	KW	14.8

Products Display
Application field
Home Appliances
Building Materials
Automobile Fittings
Daily Necessities
Showroom Review
Factory Review

---
