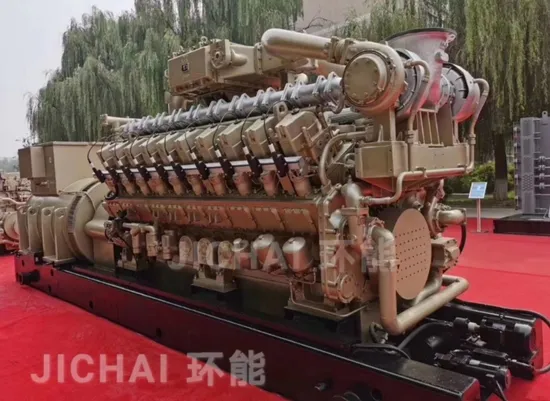

800kw 1MW 2MW Diesel Engine Generator

Product Description

Jichai Brand Generator is designed and manufactured to be high quality, long usage life, easy operation, low maintenance cost, high intelligence with low engine speed, low fuel consumption, low gas quality requirement, tough environmental adaptability, high stability and low fluctuation. The generator is desirable for industrial power solution.
Diesel engine coupling gear box set With a wide application in oil drilling field,
the product is the standard equipment configured for oil drilling rigs currently.
1000KW DIESEL GENERATOR :

GENERATOR SPECIFICATION
Genset model	1000GF-D
Output power	1000KW/1250KVA
Output voltage	400/230V
Output currency	1800A
Rated frequency	50Hz
Rated speed	1500rpm
Dimension	12000X2400X2700mm
Weight	14000kg

ENGINE SPECIFICATIONS

ENGINE SPECIFICATION
Brand / Origin	Jichai 2000 Series
Engine model	BG12V190ZL-3
Rated power	1090kw
Number of cylinders	12.V
Bore x stroke	190X210mm
Start method	electric start
Cooling method	Closed water circulation cooling
Governor method	Electrical
Intake mothod	Turbocharged
Overload capacity	110%
Speed	1500rpm

ALTERNATOR SPECIFICATION

ALTERNATOR SPECIFICATION
Brand / Origin	STAMFORD/1FC Series/Enge
Alternator model
Rated power	1250KVA
Rated voltage	400V
Insulation class	H
Protection level	IP23
Wiring	3P4W Y-connection
Adjustment method	AVR
Output frequency	50Hz

Control system The monitoring and protection cabinet of the control system is installed on the unit base.
The control system configuration is as follows:
√ Control cabinetü
√ Cabinet componentsü ü
√ Emergency stop button
√ Brand new controller
Scope of supply √ Brand new diesel engine.
√ Brand new alternator.
√ Control panel with controller
√ Anti-Vibration elements between engine/alternator and base frame.
√ Radiator with engine driven fan.
√ Battery with battery cables and rack,loose silencer, elbow pipe, supplied with the expansion joint, battery and battery connections
√ English operation/maintenance manuals/test report for engine, alternator and genset.
√ Standard tools kit.
Any more details,feel free to contact us:
ellayuan@ jichaipower. com

---
