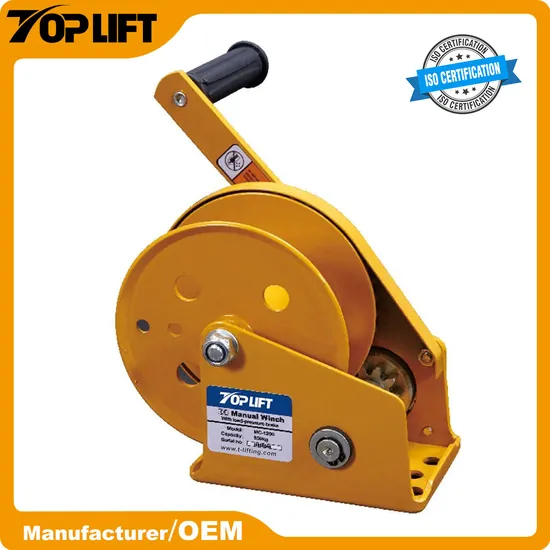

Toplift OEM Manufacturer Manual Hand Crank Cable Winch for Pulling Trailer Boat

Product Description

TOPLIFT Manual Hand Winch Safety Reliability in Lifting and Lowering Applications 1800LBS
Standard Features include:
Winching housing and rope drum from robust steel plate for high versatility.
Rope drum bush bearing for flawless rope lead-off.
Spur gear drive for optimal efficiency.
Compact design.
Easy and quick mounting onto walls,poles, towers tes.
Automatic load pressure brake for safe holding and extremely sensitive lowering of he load.
Unintentional brake release is prevented even with swinging loads.
Suitable for operation in ambient temperature of -10°to+5°

Model

Rated Capacity(LBS)

Test Load(kN)

Transmission Ratio

Hand Operated Strength(N)

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

F(mm)

G(mm)

H(mm)

J(mm)

R(mm)

Net weight(no wire rope)(KG)

MC1800

1800

12.0

5:1

190

Φ60

Φ180

60

190

Φ27

288

110

203

246

319

8.1

Product Information:
WLL:1200-2600LBS

Specification
Production Process

Other products

FAQ
What can we do?
1. Meet all of your lifting equipments &riggings' needs.
2. Service on inspection for lifting equipments and rigging material.
How do you control your quality?
1.Selection of high-quality steel material from famous steel group.
2.Production process standardization, process standardization, refinement.
3.100% Finished Product Testing.
4.The third party product inspections are acceptable.
5.ISO Quality Management System Certificated Factory
6.Inspection before loading
What are your advantages compared with others?
1.Specializing in the field of lifting equipments and rigging product supply for around 10 years., have rich experience in Production.
2.The same quality product, the best price.
3.Timely Delivery with the support of 3000 square meters workshop.
4.Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.
5.Over 20 Professional Staff in Trading Team,Let you enjoy worry-free and effective communication.

---
