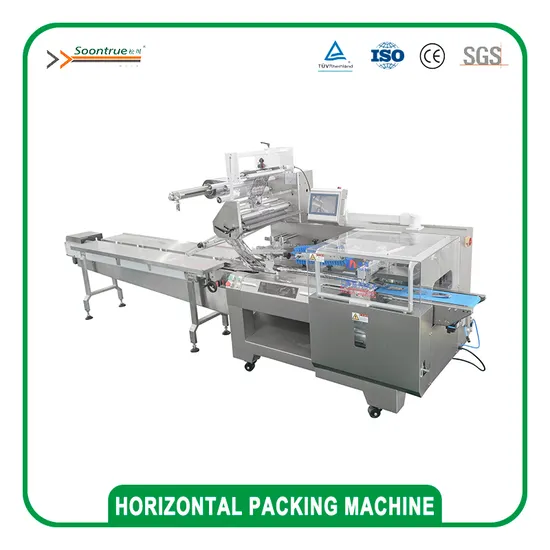

Efficient Horizontal Flow Packing Machine for KN95 Masks

US$15,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HP-250/HP-350
Application
Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
Type
Filling and Sealing Machine
Forming Species
Bag Moulding
Forming Function
Filling
Driven Type
Electric
Material Type
All
Packaging
Cartons
Packaging Material
Bamboo, Wood
Bag Length
60-190mm or 120-280mm
Product Height
Max. 55mm
Film Roll Diameter
Max. 320mm
Packing Speed
40-230 Bag/Min
Transport Package
Wooden Case
Specification
4020× 745× 1450mm
Trademark
Soontrue Huihe
Origin
China
Production Capacity
5000

Product Description

Product Description Features
1. Double motor, double Panasonic transducer control and PLC controller, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and films.
2. Buttoned human-machine screen, Chinese or English displaying, convenient and quick parameter setting.
3. Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking, digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. All the controls are achieved by software, convenient for function adjusting and upgrading.
Application
Suitable for all kinds of face mask packaging, such as N95, KN95, KN90, FFP1, FFP2, FFP3, KF94 mask, etc.
Specification
Model HP-250 HP-350
Film Width Max. 250mm Max. 350mm
Bag Length 60-190mm or 120-280mm 60-190mm or 120-280mm
Bag Width 30-110mm 50-160mm
Product Height Max. 55mm Max. 55mm
Film Roll Diameter Max. 320mm Max. 320mm
Machine Weight 500kg 600kg
Machine Size(L*W*H) 3770×670×1450mm 4020×745×1450mm
Packing Speed 40-230 bag/min 40-230 bag/min
Power Supply 220V 50/60Hz 2.4KW 220V 50/60Hz 2.6KW
