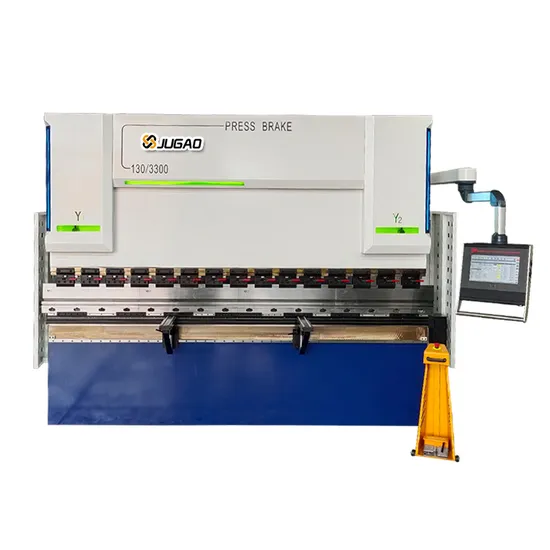

We67K Series Electro-Hydraulic CNC Press Brake Machine for Bending Metal Sheet

Product Description

WE67K Series Electro-Hydraulic CNC Press Brake Machine for Bending Metal Sheet
Product Features
WE67K series electro-hydraulic servo synchronous CNC bending machine adopts electro-hydraulic servo valve dual-cylinder synchronous control and hydraulic convex automatic compensation system. The back gauge mechanism can control multiple back gauge shafts. After tempering, the hydraulic system adopts integrated control system, imported sealing ring, beautiful appearance and concise appearance. The numerical control system adopts DA-58T 2D numerical control system with colorful graphics by Dutch Delem company.
# Integral welding processing structure
# International famous brand electro-hydraulic servo valve and grating ruler form closed loop control mode
# High slider position feedback accuracy, accurate and smooth operation, good synchronization performance, bending accuracy, high slider repeat positioning accuracy.
# Rear baffle material can be according to customer demand to adopt more complete function of the rear baffle material shaft of the rear baffle material mechanism.
# The hydraulic system adopts integrated control system, which reduces the installation of pipelines, eliminates oil leakage, ensures the working stability of machine tools, and makes the appearance scientific and beautiful.
# Hydraulic deflection automatic compensation mechanism, eliminate the impact of slider deformation on the quality of the workpiece, CNC system automatically adjust the amount of compensation, easy and accurate operation.
# CNC system using the Netherlands DELEM, Italy ESA, Switzerland CYBELEC and other well-known brands dedicated CNC bending machine system.
Standard configuration specification:
# Hydraulic system: BOSCH, Germany
# Servo motor and drive: nanjing easton
# Grating ruler: HEIDENHAIN, Germany, GIVI, Italy
# Ball screw and linear guide: HIWIN, Taiwan
# Main electrical components: French SCHNEIDER
# Bench compensation: hydraulic compensation or mechanical compensation
# Simple adjustable pre-moving bracket with guide rail
Working principle of hydraulic deflection compensation mechanism
In the process of bending, the Angle of the bending workpiece is inconsistent due to the certain amount of deformation between the slider and the workpiece, especially the hot-rolled plate of stainless steel, which has large rebound force and large error.This series bending machine adopts the workbench hydraulic automatic deflection compensation mechanism, it is composed of a set of oil cylinder installed in the workbench, and each compensation location of the oil cylinder, size is according to the slider, finite element analysis of the deflection curve design compensation table, hydraulic compensation is after the former three vertical plate, the relative displacement between the neutral version of the convex compensation, to achieve its principle is accomplished by elastic deformation of steel itself raised, so the amount of compensation can be realized within the elastic range in the workbench.
Technical parameter

Model	Nominal Pressure (kn)	Length of table (mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open Hight(mm)	Main Motor (kw)	Dimensions (L × W × H)(mm)
40/2000	400	2000	1600	200	110	335	4	2545×1510×2050
40/2500	400	2500	2000	200	110	335	4	2950×1510×2080
63/2000	630	2000	1600	250	110	350	5.5	2555×1600×2130
63/2500	630	2500	2000	250	110	350	5.5	2960×1600×2180
63/3200	630	3200	2600	250	110	350	5.5	3740×1600×2230
100/2500	1000	2500	2000	350	150	400	7.5	2980×1650×2330
100/3200	1000	3200	2600	350	150	400	7.5	3740×1650×2355
100/4000	1000	4000	3200	350	150	400	7.5	4550×1650×2450
100/5000	1000	5000	4000	350	150	400	7.5	5100×1500×2650
125/2500	1250	2500	2000	350	150	410	7.5	3980×1650×2370
125/3200	1250	3200	2600	350	150	410	7.5	3750×1650×2450
125/4000	1250	4000	3200	350	150	410	7.5	4550×1650×2470
125/5000	1250	5000	4000	350	150	410	7.5	5100×1500×2795
125/6000	1250	6000	4500	350	150	410	7.5	6100×1500×2895
160/2500	1600	2500	2000	350	150	425	11	2980×1715×2410
160/3200	1600	3200	2550	350	150	425	11	3750×1715×2450
160/4000	1600	4000	3200	350	190	450	11	4550×1715×2730
160/5000	1600	5000	4000	350	190	450	11	5100×1570×2900
160/6000	1600	6000	4500	350	190	450	11	6100×1570×3010
200/3200	2000	3200	2600	350	240	460	11	3750×1815×2715
200/4000	2000	4000	3200	350	240	460	11	4550×1815×2850
200/5000	2000	5000	3800	350	240	460	11	5100×1715×3020
