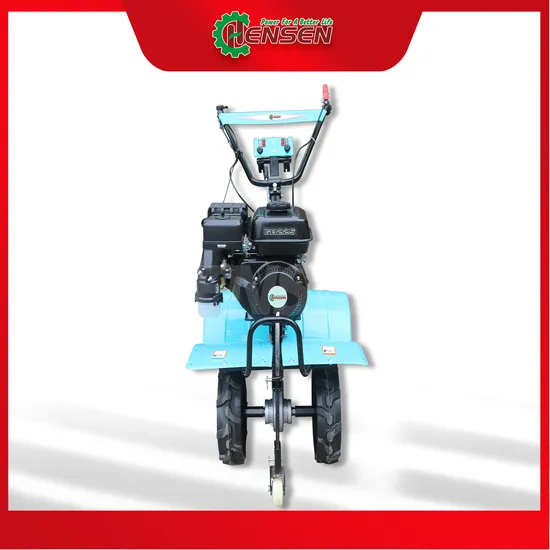

Mini Multi-Purpose Field Micro Tilling Machine

Product Description

Brief Introduction
3TG-4Q is one of our newly developed 4 wheel drive agricultural power tillers, it is powered by Zongshen GB225 top quality single cylinder, four stroke, horizontal shaft gasoline engine, which can provide 8hp strong power to the power weeder. It has two axles, the rear axle is for driving use, with one set of 2*2 blades for dry land or one pair of iron wheels for wet land, it can provide strong forward or backward force, to give sufficient force to the tiller. The front axle is for working, usually we use a 4*3 or 4*4 dry land blades or one set of anti-wrapping wet land blades on front axle. The working width is about 800~1000mm. Different from traditional power tillers and 4*4 agricultural mini tillers, this 4*4 mini tiller features in light weight, flexible in field, high efficiency, easy operation, and stronger power, it is a very ideal choice for women and old people. According to operators' needs, the handle length can be adjusted, and there are differential system too for the agricultural machine for its easy turning in field. Detailed Photos
Product Parameters
Technical Specifications

Model		3TG-4Q
Drive type		Gear drive
Gearbox size		Φ23
Engine model		Zongshen GB225 (8HP)
Tilling width(mm)		600-1050
Tilling depth(mm)		100-300
Gearshift	Rear axle	-1, 0, 1, 2, 3
	Front axle	1, 0, 2
Starting system		Recoil start / Electric start
Handle moving directions		Up and down, short and long
Blades type (front axle)		32pcs (2+1+1) with side discs
Tyre size (rear axle)		3.50-6 solid tires
Driving (rear axle		Iron wheel and driving blades
Packing type		Plywood box
Dimensions(mm)		930×470×780
NW/GW(kg)		73 / 85
20GP/40HQ (pcs)		90 / 186

Certifications
