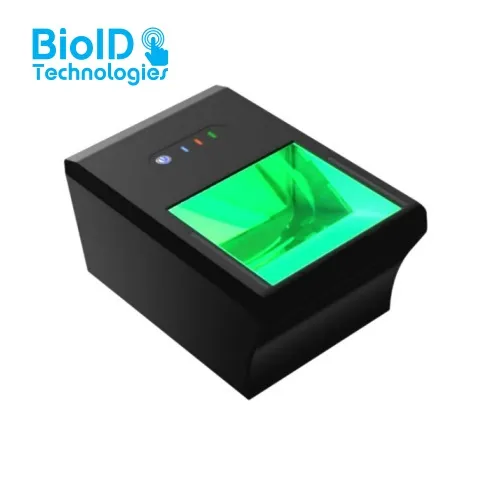

BioID Technologies' BioPalm-F is the compact and lightest palm scanner fully certified with FBI's IAFIS Appendix-F specification which enables the scanner to deliver reliable and superior image quality and make it the optimal capturing device for criminal enrollment or background check. The BioPalm-F employs the most advanced optical technology and dedicated special lighting source plus the enhanced fingerprint identification algorithm that allow the high speed finger and palmprint capturing including rolled prints. The integrated automatic capture functionality ensures rapid capturing of high quality image for biometric data collection and eliminates the possible reprint issues.
| Image Types | Single Flats, rolls, slaps, lower, upper and writer's palm prints |
Image Size
| Palm prints up to 5.0" x 5.0" |
| Flat 4-fingers slaps prints up to 3.2" x 3.0" |
| Single rolled fingerprints up to 1.6" x 1.5" |
| Image Resolution | 500 dpi, 256 levels of gray |
| Image Quality | FBI's IAFIS IQS Appendix-F certified, NFIQ2.0 |
| Image Format | BMP, WSQ, ISO/IEC 19794-4, ISO/IEC 19794-2 |
| Acquisition Mode | Auto capture and manual mode |
| Visual Indicators | Intuitive 3 LED status indicators |
| Buzzer | On board programmable |
| Power Supply | 100-220V AC, 50-60Hz |
| Interface | USB 3.0 |
| Weight | 3.2 kg |
| Dimensions (L*W*H) | 256mm x 164mm x 128mm |
| Operating Systems | Windows, Linux OS |
| Software & SDKs | Scan demo, APIs for system integration |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Humidity Range | 10% to 90%, non-condensing |
