US$12,500.00-15,000.00
|
1 Set
(MOQ)
|
Basic Info.
Calibrating Head Lifting Stroke
100mm
Worktable Size
3000X1100/1250mm
Color
Black and Red(or Customizing)
Transport Package
Plastic Packing
Specification
6800x2150x2100mm/7000x2350x2150mm
Production Capacity
50 Sets Per Month
Product Description
Product Description:

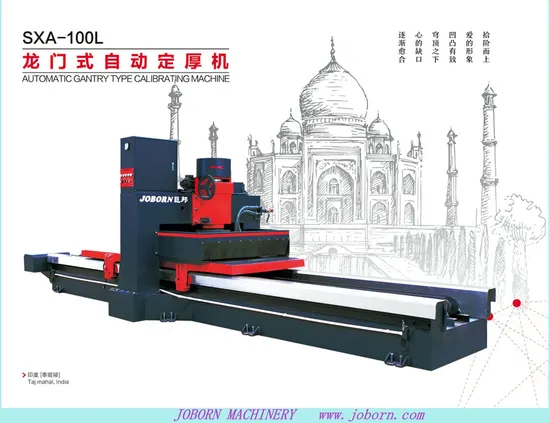

JOBORN Gantry Type Stone Thickness Fixing Machine for Natural Granite Marble, Automatic Stone Calibrating Machine
JOBORN SXA Automatic Gantry Type Calibrating Machine. This machine adopts the structure of gantry type, good rigidity, Calibrating head lifting easy, can be locked when working, prevent shaking. Uses inverter to control worktable left-right feeding, adjusts the speed according to the stone material and machining thickness, automatic work. Thus the whole machine is featured as good performance, high working efficiency, high working precision, high stability, uniform in thickness to suit stone slab calibrating and factory for sheet and clad plate.
Technical Parameter:
| SXA Automatic Gantry Type Calibrating Machine |
| Appellation | Unit | SXA-100L |
| Calibrating head diameter | mm | 1080 | 1350 |
| Calibrating head lifting stroke | mm | 100 |
| Worktable size | mm | 3000x1100 | 3000x1250 |
| Water consumption | m³/h | 6 |
| Power of main motor | kW | 22 | 30 |
| Total power | kW | 24 | 32 |
| Dimension(LxWxH) | mm | 6800x2150x2100 | 7000x2350x2150 |
| Weight | kg | 3500 | 4200 |
Processing Spot:
FAQ:
Q: Are you manufacturer ? A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service. Q: Can I get a machine according to my own requirements? A: Sure. Welcome OEM and ODM orders. Q: This is the first time I use this kind of machine, is it easy operate? A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well. Q: What's your MOQ and delivery? A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you. Q: How is your after sales service? A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance. Q: If my machine is broken. Can you repair it for me? A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.
>>
