Multi-Functional Universal Pin Grinding Powder Pulverizer Crusher Mill Machine for Food

Product Description

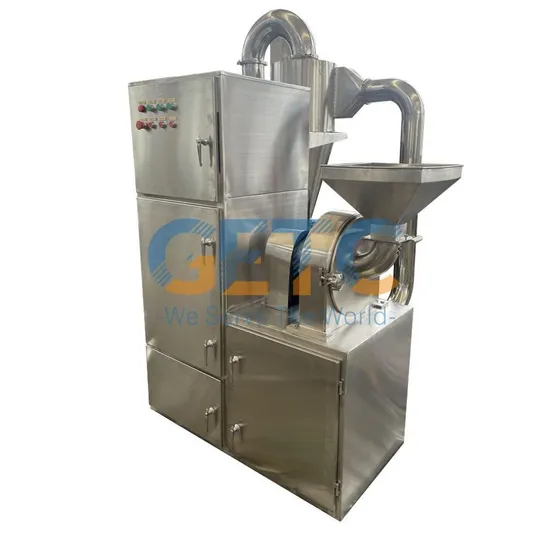

Product Description This multi-functional universal pulverizer utilizes the relative movement between the moving-gear and fixture gear. The materials are pounded by dish, rubbing and materials are each other pounded. Thereby the materials are crushed. The materials that are already smashed through the function of revolve eccentricity power, enter into gathering bag automatically. The powders are filtered through dust arrester-box. The machine adopts GMP standard design, using the stainless steel materials all, having no powder to float in the production line. Now it already reaches international advanced level.
Features This machinery adopts wind-wheel type, high-speed revolving cutters to mill and shear the materials. This processing achieves excellent crushing effect and crushing energy and finished products are blown out from screen mesh. The fineness of the screen mesh is changeable by various screens.
Applications This machinery is mainly applicable for weak-electric substances and high temperature-resistant substances such as chemical industry, medicine (Chinese medicine and medicine herbs), foodstuff, spice, resin powder, etc.
Product Parameters

Type	DCW-20B	DCW-30B	DCW-40B
Production capacity (kg/h)	60-150	100-300	160-800
Main shaft speed (r/min)	5600	4500	3800
Size of input (mm)	≤6	≤10	≤12
Crushing size (mesh)	60-150	60-120	60-120
Crushing motor (kw)	4	5.5	7.5
Motor of absorbing dust (kw)	1.1	1.5	1.5
Overall dimensions L×W×H (mm)	1100×600×1650	1200×650×1650	1350×700×1700
