Cheap Price Vanilla Pod Cumin Sugar Salt Grinding Superfine Pulverizing Grinder Machine

Product Description

Product Description
Key attributesRatings & ReviewsKnow your supplierProduct descriptions from the supplierCheap price vanilla pod cumin sugar salt grinding superfine pulverizing grinder machine

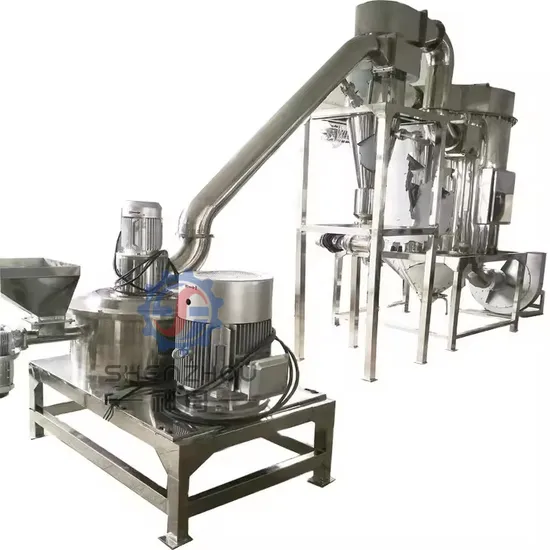

WFJ series air classifying mill pulverizer is used for fine and ultra-fine grinding of soft to medium hard, brittle, crystalline and fatty materials with a controlled particle size distribution.WFJ series air classifying mill pulverizer are high-energy vertical grinding mills incorporating an internal air classifying wheel to control product particle size distribution.Material is fed into the grinding chamber via screw feeder and strongly impacted and collided into fine powder between the high-speed disc rotor and teeth liner.After grinding process, fine powders are carried to the classifying section by airflow where qualified powders are suctioned into the interior of the classifying wheel and discharged as products; coarse powders flow through the inner guide ring back to the grinding chamber because of centrifugal force for re-grinding. Final product is collected by cyclone and bag house.WKS series air classifying mill pulverizer has been widely used for milling/pulverizing high fiber content materials, heat sensitive materials and brittle materials in food, chemical and industry.Made of 304 stainless steelGMP and food grade designAir classifyingCustomized serviceHigh Efficiency Easy OperateVideo technical /Online support Technical Paramers

Model	WFJ-10	WFJ-20	WFJ-30	WFJ-60
Capacity (kg/h)	10-200	20-400	30-800	50-1200
Input size (mm)	≤10	≤12	≤12	≤12
Output size (mesh)	80-320	80-450	80-450	80-450
Total installation power (KW)	11.5	22.5	46	84.15
Rotating speed (RPM)	5800	5800	5800	5800
Installation dimension (mm)	5410x1660x2500	5500x1800x3100	9000x2200x4000	9000x2700x5280
Gross weight (kg)	850	1200	1500	3200

DetailsGRINDING CHAMBER & DISC:Alloy steel disc and cutter headPrecision manufactured partsAir classifyingScrew feedingFrequency controlDymatic balance supportAIR CLASSIFIERMaterial of 304 stainless steelNo screen, simpler classificationVariable frequency speed regulation, easier operationParticle size distribution can be accurately controlledDRIVE MOTORTriple phase asynchronous motorAll copper motor, excellent performanceFrequency controlFeeding motor/grinding motor/air classifier motor/air locker motor/draft fanCustomized DUST COLLECTOR Pulse dust removal system Bag filter Visual Window Made of 304 stainless steel CONTROL SYSTEM Button/PLC Frequency converter Emergency stop Easy to operate
Application scope
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd. is a comprehensive, efficient and intelligent technology-based enterprise integrating product design, research and development, manufacturing, engineering installation, sales, technical consultation and after-sales service.
The company is mainly engaged in:
1. R&D and manufacturing of drying, mixing, granulating, crushing, conveying, screening and other equipment;
2. R&D and manufacture of complete sets of equipment for extraction, concentration, evaporation, crystallization, biological fermentation, filtration, transportation, blending, dissolving, CIP online cleaning and sanitary fluid valve and pipe fittings;
3. R&D and manufacturing of automatic packaging and filling equipment.
The company has complete processing equipment, more than 42 sets of manufacturing and inspection equipment such as lifting, cutting, welding and cutting, and has an excellent product development environment and production environment. The company has a team of senior technical personnel with strong innovation ability and rich experience. Among them, there are 5 product design engineers and more than 60 professional production technicians, with strong technical force and rich experience in design and manufacturing.
The company has adopted advanced management methods, established a complete quality assurance system, and passed the ISO9001 quality system certification, so that the products comply with the new version of GMP specifications, and provide customers with more extensive products and services. The company's products are exported to more than 30 countries including the United States, the United Kingdom, Canada, Australia, Russia, Malaysia, Singapore, Vietnam, South Korea, Bangladesh, India, and Germany. The products have been used by more than 5,000 users at home and abroad, and have won a good reputation from users. At the same time, the company has established long-term distribution partnerships with customers from many countries around the world. Facing the increasingly standardized domestic and foreign markets, the company adheres to the corporate philosophy of "open competition, cooperative innovation, consideration of justice and interests, and common development", and with perfect after-sales service, the belief of winning, facing challenges and opportunities, and developing and growing together with customers.
Packing

---
