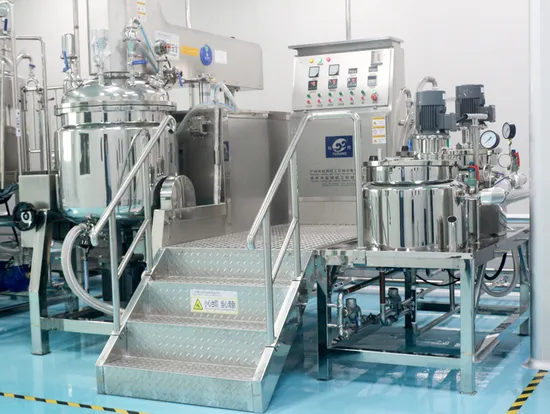

Small Scale Cream Gel Mixer Blending Tank Vacuum Homogenizer Emulsifier

Product Description

Small Scale Cream Gel Mixer Blending Tank Vacuum Homogenizer Emulsifier
Small Scale Cream Gel Mixer Blending Tank Vacuum Homogenizer Emulsifier mainly refers to the material in a vacuum state, using a high shear homogenizer to quickly and uniformly distribute one phase or multiple phases in at least one other continuous phase (aqueous phase, oil phase, powder, etc.) The strong kinetic energy makes the material in the gap between the stator and the rotor, and it can withstand hundreds of thousands of times of high-speed shearing, centrifugal crushing and impact tearing every minute, and evenly disperse the emulsification instantaneously. After high-frequency reciprocation, finally A high quality product with no bubbles and fineness is obtained.
Main components of blending mixer emulsifier :
Hydraulic lifting system (one button lift, one button down)
Heating thermostat system (steam heating)
Slow mixing function (frame type scraping bottom scraping)
Homogeneous emulsification function (high speed shear homogenizing head)
Vacuum system (vacuum degree up to -0.095MPA)
Performance and characteristics of blending mixer emulsifier :
Homogeneous mode: bottom homogenizing
The stirring method is: single way mixing
Stirring and homogenization adopt imported frequency converter to meet the requirements of different production processes
Homogeneous structure of German technology, the speed can be customized, the highest cutting fineness can reach 2um-5um
Vacuum defoaming to make the material meet the sterility requirements, vacuum suction (water, oil, powder) can be used.
The main pot lid can be lifted and lowered, easy to clean, and the pot body can be dumped and discharged.
Three-layer stainless steel structure of the pot body, mirror polished, fully in line with GMP requirements
Safety protection system of blending mixer emulsifier :
There is no vacuum to lift the lid.
The lid cannot be lifted when the mixture is opened.
The stirring cannot be started when the lid is raised or the lid is not covered.
The dump does not reset and the lid cannot rise and fall.
The lid does not rise to the highest point and cannot be dumped.
Stirring, homogenizing overload, or automatic shutdown of grid overvoltage.
The main pot cooling water is automatically drained when the interlayer pressure exceeds the set pressure.
There will be a buzzer alarm when the main pot beam rises and falls.
The electronic control system is equipped with an emergency stop button to prevent immediate stop in case of emergency.
Safety signs (Chinese and English) are attached to the equipment rack and electrical box and the eye-catching operation

Suitable for
Main Features
1, Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
2, Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
3, Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few production, it can exert homogenizing effect fully;
4, Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut, rubbing, centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
5, Customer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min.
Technical Parameter:

Model	Main pot	Water pot	Oil pot	Main pot power		Hydraulic System	Vacuum pump power(Kw)
	Volume(L)			Wall scraping	Homogenizer
RHJ-5L	5L			0.18	1.1	0.75	0.55
RHJ-10L	10L	7	5	0.37	1.1	0.75	0.75
RHJ-20L	20L	14	10	0.75	1.5	0.75	0.75
RHJ-50L	50L	35	25	1.1	2.2	1.5	1.5
RHJ-100L	100L	70	50	1.5	3	1.5	1.5
RHJ-200L	200L	140	100	2.2	4	1.5	2.2
RHJ-300L	300L	210	150	3	5.5	1.5	2.2
RHJ-500L	500L	350	250	4	7.5	1.5	2.2
RHJ-1000L	1000L	700	500	5.5	11	2.2	3

---
