Product Description
Product Description

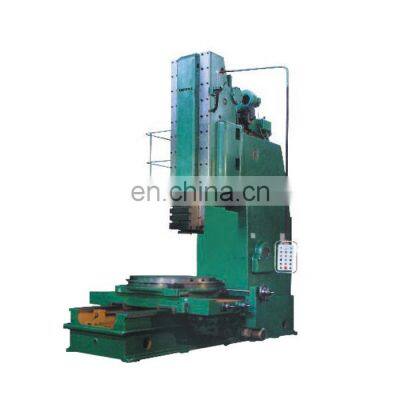

Product DescriptionMain features: 1. This machine can process various large and medium-sized parts inside and outside planes, profiles and keyways, etc. 2. The upward or downward speed of the ram can be adjusted during work without stopping. 3. The ram, table and oil pump are all driven by separate motors, and the slotting speed can be adjusted steplessly. 4. The machine is equipped with various safety devices, and the machine is equipped with an electromagnetic automatic tool holder and tool holder. 5. The tool holder is used for external plunge cutting, and the tool holder is used for internal plunge cutting and key slot insertion.SpecificationBC50100Maximum cutting length (interpolated inner hole 850mm)1000mmCutting stroke speed4-25m/minReturn travel speed7-25m/minMaximum weight for pluggable work4000kgMain drive motor power37kwAllow maximum cutting force (when the stroke speed is 16m-20m)24500NTable diameter1250mmMaximum movement of the workbenchV: 1200mm, H: 1100mm, R: 360°Distance from the tool support surface to the front wall of the bed1120mmVertical feed0.2-5mm/double strokeHorizontal feed0.2-5mm/double strokeCircimference (on the circumference of 700)0.4-10mm/dcxble strokeDistance from work surface to the lower end of the carriage1140mmWorkbench quick shift： portrait and landscape500mm/minMachine dimensions (length x width x height)4400x2830x5730mmTotal machine weight (including electrical equipment)22TCompany ProfileProfessional ServiceCustomers' FeedbackFAQQ1: How is the warranty? A1: Warranty time is 13 months after BL date. Q2:Can we visit your factory before order? A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking. Q3:Do you have a stock? A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs. Q4:What’s the MOQ? A4:One set only. Q5:How about your quality? A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services. Q6:Do you have professional engineers? A6:Yes.we have professional engineers and designers. We can provide OEM services. Q7:Can you provide customized machines? A7:Yes, we can design and manufacture according to your specific requirements.
