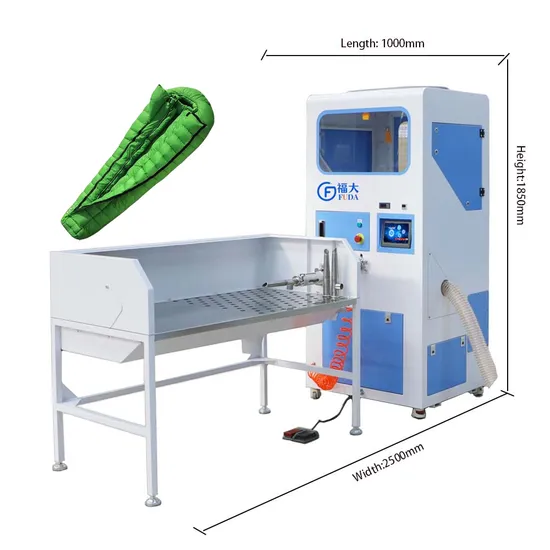

FUDA Small Volume Automatic Touch Screen 1 Station 2 Weighing Scales Down Sleeping Bag Filling Machine

Product Description

Product Overview H21E Automatic Goose Down Filling Machine with 1 Port 2 Scales. the goose-down filling process of the quality down jacket was made by FUDA, each grid-filling range is around 0.2-35 grams, the average error is 0.1-0.2 grams, and the average daily capacity is around 100-150 down jackets. the 1 Head 2 Scales automatic down cotton filling machine is suitable for a 30-50 people garment factory that focuses on the quality garment process. Products Description Product Advantages

High accuracy	The dynamic error accuracy is ±2%.
Control system - Compiled PLC	Quickly, the communication speed rate: 0.4ms.
Touch screen - HD HMI	Easy to learn and operate, Multi-language, sensitive touch.
Feeding Material - accuracy	the error accuracy is controllable.
Returning Material - Quickly	The one-key operation is to empty the remaining material in all scales.
Dedusting recycling - Clean	Dustless working environment, reducing raw material wastage.
Gear motor - low noise	Low noise, high torque, long life, and easy maintenance.
Appearance - The Beauty of Simplicity	Compact design, clean white, technology blue.

Product Parameters

Model NO.	H21E
Product Name	Automatic Goose Down Filling Machine
Filling Valve Head	Single-Head
Filling Range	0.2-35g
Display Accuracy	0.01g
Nozzle Size	19mm/25mm with air return, 32mm for duvet
Storage Volume	2-3Kg
Filling Materials	Duck Down, Goose Down, Polyester Fiber, Ball Fiber
Application	Down Jacket, Down Pants, Down Duvets
Daily Capacity	100 plus down jackets
Power Supply	1Ph Ac220v 2.0Kw
Air Supply	0.6-0.8Mpa, 6.0Kw
Display Device	7" Touch Panel
Control System	PLC with 2 Weighing Units
Footprint	1.0*2.5*2.0m(L*W*H)
Net Weight	175Kg
Gross Weight	252Kg
Transport Package	Wooden Case
Specification	1 Ports 2 Scales
Trademark	FUDA
Origin	Shanghai

Applications Detailed Photos Fuda Profile

---
