| US$280,000.00-3,000,000.00 | 1 Set (MOQ) |
| Pulping system is the waste carton, waste paper edge and other raw materials after breaking, grinding, screening and other procedures, made into the fiber water suspension to meet the requirements of paper making, and then through the flow system sent to the paper machine copy resulting in meeting the requirements of the user process. |

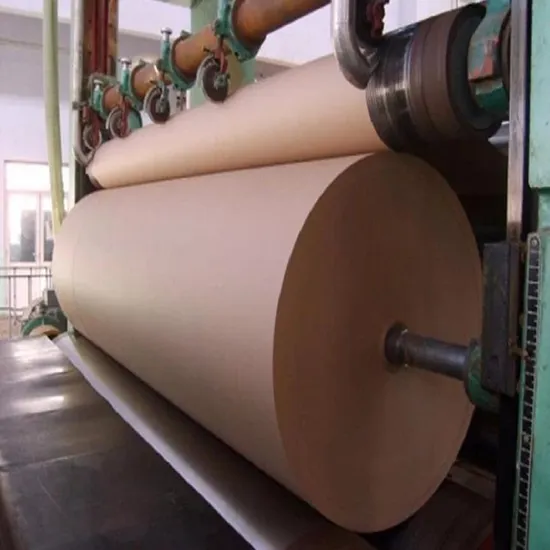

| Paper making machine is a paper machine which can make paper by dewatering, extrusion and drying the suspended pulp. The raw materials used are: waste cartons, wood pulp pull, etc. It can produce kraft paper, high strength corrugated paper, shopping bag paper, fruit paper and so on. Reliable quality, stable performance, easy operation, energy saving and environmental protection, is the ideal product in papermaking machinery. |
| Paper machine technical description: | |
| Main products : | Corrugated paper, etc. |
| Fixed amount : | 80 ~250gsm |
| Equipment form | Three garden net double cylinder |
| Production volume : | 12-15T/24h |
| Net paper width : | 2500mm |
| Design speed : | 60m/min |
| Transmission speed: | 20-50m/min |
| Dynamic balance speed : | 200m/min |
| Roller balance : | G2.5 level |
| Dryer balance : | G4 level |
| Paper roll : | G1.6 level |
| Transmission mode : | AC motor, digital display division frequency conversion speed regulation drive |
| Arrangement : | Left and right mobile phones (selected by the user) |
| Track from : | 3400mm |
| 15 . Large Name 1 | Dryer : Ø 2500mm × 2 th |
| 16 . Large name 2 | Cage : Ø 1500 mm ×. 3 th |
