5XFZ-25SC Clarity 99% Grain Seeds Cleaning Machine Manufacturing Processing Machinery

Product Description

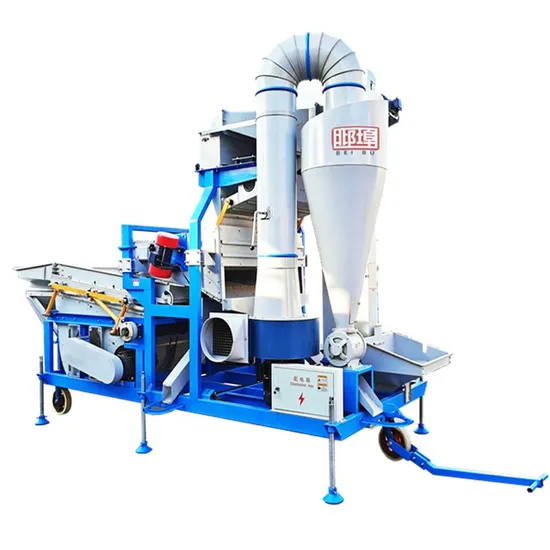

5XFZ-25SC Clarity 99% Grain Seeds Cleaning Machine Manufacturing Processing Machinery
Product Description
The 5XFZ-25SC Air Screen Cleaner with Gravity Table is suitable for cleaning most grain seeds, such as sesame, beans, corn, wheat, peanuts, etc.
It can remove impurities such as unsaturated particles, moldy particles, insect-eaten particles, dust, straw, light impurities, large and small impurities;
Soybean cleaning is 7-8 tons/hour, sesame cleaning is 4-5 tons/hour, corn and wheat is cleaning 10 tons/hour, and the purity can reach more than 99%.
Multi-function: integrates air screening, specific gravity selection, and classification screening;
High purity: Effectively removes more than 95% of seeds, buds, insect-eaten grains, mildewed grains, and more than 99% of impurities such as straw, straw, and broken grains;
Process: full laser CNC process, sandblasting and plastic spraying surface treatment;
Easy to operate: the specific gravity table and screen can be replaced to facilitate daily cleaning and material switching;
One machine for multiple purposes: suitable for cleaning most grain seeds
Machine Structure
Working Principle
•The raw grain go to machine by elevator,first go through the vertical air screen cleaner which will remove the dust and light impurities ;
•Then the grain will go to the small vibration box which got two layers can remove the big and small impurities;
•After that the grain will go to the gravity table which can remove the small sticks,lighted,moldy and insected grain;
•Finally it will go to the half back sieves which can remove the big and small impurities again.
•The machine for sesame cleaning is 4-5t/h and purity is above 99%;for soybean cleaning is 7-8t/h.
Cleaning Result
Machine Advantages
Easy to operate with high performance.
High Purity :99% purity especially for cleaning sesame, groundnuts beans
High quality motor for seeds cleaning machine, high quality Japan bearing.
7-15 Ton per hour cleaning capacity for cleaning different seeds and clean grains.
Non broken low speed bucket elevator without any damage for the seeds and grains.
Product Parameters

Model	5XFZ-25SC Air Screen Cleaner with Gravity Table
Sieve Size	1000mmx1250mm
Power(kw)	Fan motor: 5.5KW Vibration motors: 0.25X2KW Gravity table Fan Motor:4KW Gravity table vibration motor:1.5KW Elevator:0.55KW Rotary valve motor:0.55KW Total in:12.6KW
Capacity(t/h)	7-8t/h based on soybean,4-5t/h based on sesame
Weight(kg)	2500
Overall Size L×W×H(mm)	4600mm*2500mm*3400mm
Voltage	380V, 50HZ, three phases
Gravity Separator Table Size	1700mm*1700mm

Machine Loading Picture

Client Cases
Installation Warehouse

---
