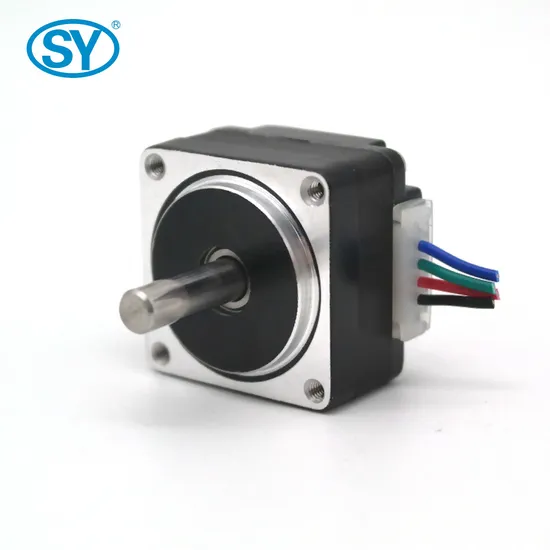

NEMA 11 2phase 1.8 28BYG Micro Flat Hybrid Stepper Motor

Product Description

28mm Stepper Motor for Precision Component Stepper motors, AC servo motors and brushless dc motors are avaiable to customized for the world, NEMA 11, 14, 16, 17, 23, 24, 34 stepper motor, 50W, 100W, 200W, 400W, 500W, 750W, 1000W, 1200W AC servo motor, and brushless dc motor are all included. The derived products are widely used in ATM machines, digital scanners, stylus printers, plotters, slot machines, CD-ROM drivers, stage lighting, camera lenses, CNC machines, medical machines, 3D printers, cleaning machines and quadcopter for industry and our life. All the derived products of us can be customized for your needs.
Product Description:
Features:
High accuracy Low inertia Smallsize
1. Specifications:
Motor Model: 28BYGH101
Step Angle: 1.8°± 5% full step, no load Holding Torque: 50mN.m (7.08oz-in)
Resistance per Phase: 12 ohm
Inductance per Phase: 4 mH
Rated Current: 0.3A DC
Shaft End Length: 15mm (0.59 in)
Connectors: Connectors, Lead Wires
Ambient Temperature: -24ºC- +60ºC Relative humidity: 90% MAX Resistance Accuracy: ± 10% Insulation Resitance: Larger than 100mΩ 500V DC Dielectric Srength: 600V AC for 1S, leakage current less than 1mA 2. Note: Pricing is decided by the motor's performace and parameters, most importantly decided by your requirment, contact us and get the latest the price list.
performance and parameters can be customized, just simply send your motor diagram or samples to us, we will make the best price for your reference. 3.Payment term: T/T in advance, 30% deposit, 70% balance before shipment. About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, all of raw materials comply with RoHS, welcome to contact us for more detail.
Contacts: Ms Rita Law
Mobile: (+86) 13631101993
shengyangmotor.en.made-in-china.com
Welcome to visit our factory for more details discussing!

---
