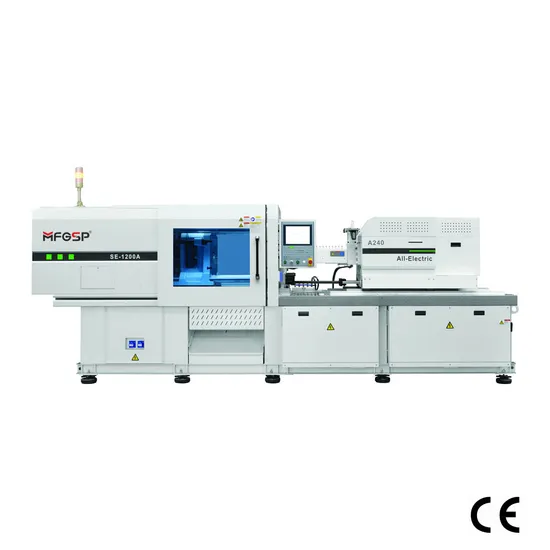

SE-1200V Energy-saving Efficiency Precision Eco-friendly Intelligence All Electric Injection Molding Machine

Product Description

All Electric Injection Molding Machine

Performance characteristic:
Zero-resistance clamping injection guider structure, heavy loaded guider device supported by linear track, better wear resistance, lower friction and more smooth operation. Optimize mold structure, tie bar no touch with moving platen,no lubrication. The system has high rigidity and strength, guarantee the accuracy of platen parallel excellently.
T-slot & screw fixation platen embedded moldlocating ring design, high-standard clampling system reduces mold loss and makes more easy mold installation.
Fast and smooth mold movement, high torque, less resistance. Clamping servo motorconnects ball screw, flexible operation and simply maintenance. High- quailty belt, warranty 10 years;superior rotating wheel,low inertia.
Top responsibility servo motor and high toreque ball screw is key element, origin Japan technology to keep advantage leading ir the word, precise for mold movement.
Parameter:

MODEL			SE-1200V
CLAMP TONNAGE		kN	1200
SPACE BETWEEN Tl E-BARS		mm	470x430
PLATEN DIMENSION		mm	690x650
OPEN STROKE		mm	360
MOULD THICKNESS		mm	150-490
EJECTOR STROKE		mm	100
EJECTOR FORCE		kN	30
EJECTOR NUMBER			5
MACHINEWEIGHT		T	6
SCREW DIAMETER		mm	25	28	32	30	34	38	36	40	45
INJECTION CAPACITY		cm3	64	80	105	92	118	147	173	214	270
INJECTION WEIGHT (PS]		g	58	73	95	84	107	134	157.5	194.4	246
PLASTICIZING CAPACITY (PS)		kg/h	25	35	48	42	61	82	71	91	123
SCREW SPEED		rpm	400			400			350
HEATER BAND			3+1			3+1			3+1
HE/JER POWER		kW	5.6			7.8			10.3
NOZZLE PRESSING FORCE		kN	19.61			19.6			29.4
STANDARD			165			240			450
INJECTION SPEED		mm / s	200			200			200
INJETION RATE (PS)		cm3 /s	98	123	161	141	182	227	204	251	318
INJECTION PRESSURE		Mpa	272	217	180	252	196	157	258	210	165
		kgf/cm2	2774	2214	1836	2569	2000	1601	2636	2135	1687
MAX.INJECTION HOLD PRESSURE		Mpa	217	176	144	202	157	126	207	167	132
		kgf/cm2	2220	1795	1468	2055	1600	1281	2109	1708	1345
TOTAL POWER		kW	20.6			28.2			40.3
OPTION			165H			240H			450H
INJECTION SPEED		mm / s	400			350			350
INJETION RATE (PS)		cm3 /s	196	246	322	247	318	397	357	440	557
INJECTION PRESSURE		Mpa	276	220	168	252	196	157	258	210	165
		kgf/cm2	2815	2244	1718	2569	2000	1601	2636	2135	1687
MAX.INJECTION HOLD PRESSURE		Mpa	221	176	135	202	157	126	207	167	132
		kgf/cm2	2252	1795	1374	2055	1600	1281	2109	1708	1345
TOTAL POWER		kW	28.8			37.8			64.3
We reserve the right to change specifications without prior notice.

OVERALL DIMENSIONS
PLATEN DIMENSIONS
Application:
The SE series of all-electric injection molding machine are more suitable for household appliance, medical,electronic optics, packaging,auto parts, and other industries with its advantages of high speed, high efficiency, high precision, energy saving and environment cleaning .

Related products:
After Sales Service
Debugging before shipping: Before shipping,all the lines will be strictly tested to ensure that customers use smoothly.
Installation at site: strict supervision for installation,commissioning and running.
Customers files establishment: detailed record on customers equipment information,and the replacement of spare parts are kept in profile for a long term save.
Regular visit system:after equipment installation and running,call to customers within one week,life-long follow-up service to the quality of products and services,to ensure that customers are worry-free.
Trouble shoot response time:establish professional sfter-sale service team,after breakdown happened,ensure engineers to provide solution within 24 hours,and solve the problem
Spare parts:Sufficiently supply,delivery in time
