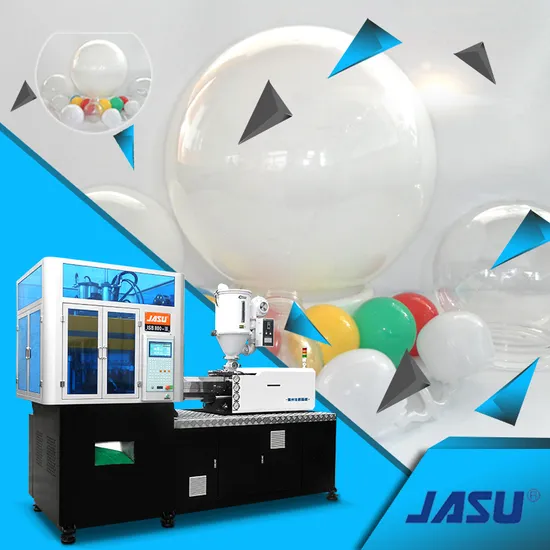

Single Stage Atomatic Lampshade Blow Molding Machine with Servo Motor

Product Description

One step injection stretch blow molding machine
INJECTION STRETCH BLOW MOLDING MACHINE ISB800-3

Parameter			Configuration List
Raw material:	PP, PC, PET, Tritan		Servo Motor and Oil Pump	Phase (Italy) and Eckerle (Germany)
Screw diameter:	40mm		Hydraulic valve	YUKEN(Japan)
Screw L/D Ratio:	20.5:1		Sealing Parts	Seal Tech, China
Screw Speed:	0-190r/min		F.R.L	China
Theoretical Injection capacity:	238cm³		Air Valve	Air TAC
Injection Pressure	174Mpa		Controller (PC)	JASU, Taiwan
Max.hydraulic Pressure	140kg/cm		Servo Motor for Turntable	TECO, Taiwan
The actual injection quantity	225g(ps)		Gear Reducer	SESAME, Taiwan
Screw Stroke	190Mm		Low-voltage components	Joint Venture
Blow Clamping Force	80Kn
Clamp Tonnage	400Kn
Wheel Diameter	800mm
Max. Height of bottle	150mm
Open vertical mode trip	430mm
Max. Pump Pressure	16Mpa
Motor Oil	18.5Kw
Optional Pump Servo Motor	22kw
Electric Power	8.9Kw
Tank Volume	400L
Dimension OF Machine	L3.8xW1.45xH3.0m
Machine Weight:	5T

Injection blowing mould
Gauangzhou Jasu Precision Machinery Co.Ltd is a sabusidiary of JASU International Machinery Group locates in Guangzhou China, which is top 3 supplier of CNC machine tools in South China. JASU owns R&D center and factories in Guangzhou and Suzhou. JASU has been dedicated to manufacturing CNC lathe, machining center, Gantry CNC milling machine and machine tool accessories for 20 years.
Absorbing the design and manufacture of Taiwan and Germany, JASU create a series of highly distinctive, automatic and cost-effective CNC Machine Tools, machine accessory and one step Injection (Stretch) Blow Molding Machine. JASU has got high reputation and trust among customers by means of modern management method, perfect quality, novel design and reasonable price.
Our company faith is "better and faster, it is JASU". We are engaged in providing machines with high quality and best service to create benefit for enterprise and create value for customer.

---
