PVC CPVC UPVC Water Pipe Plastic Machine Making Price for Electric Drainage

Product Description

PVC Pipe Production Line / PVC Pipe Extrusion Making Machine
Product Description
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → stacker
Main Composition

Item	Quantity
1.SJSZ-XXX conical twin screw extruder (Equipped with automatic feeding unit)	One set
2.Die and Mold	One set
3.Vacuum calibration unit	One set
4.Haul-off unit	One set
5.Cutter Unit	One set
6.Stacker	One set
Optional auxiliary machines for your choice
1.Printer	One set
2.Mixer	One set
3.Crusher	One set
4.Milling machine	One set
5.PVC pipe belling machine	One set

Product Parameters

Diameter(mm)	16-40dual	20-63dual	20-63	75-200	160-315	315-630
Extruder mode	SJZ51/105	SJZ65/132	SJZ51/105	SJZ65/132	SJZ80/156	SJZ92/188
Extruder power (kw)	18.5AC	37AC	18.5AC	37AC	55AC	110DC
Max lineal speed (m/min)	0.5-10	0.5-15	0.5-10	0.5-8	0.5-6	0.5-4
Max capacity (kg/h)	120	250	80-120	180-250	280-350	500-600
Installation area			24*2.8*2.0m	30*2.8*2.2m	35*3.0*2.4 m	36*3.0*2.4 m

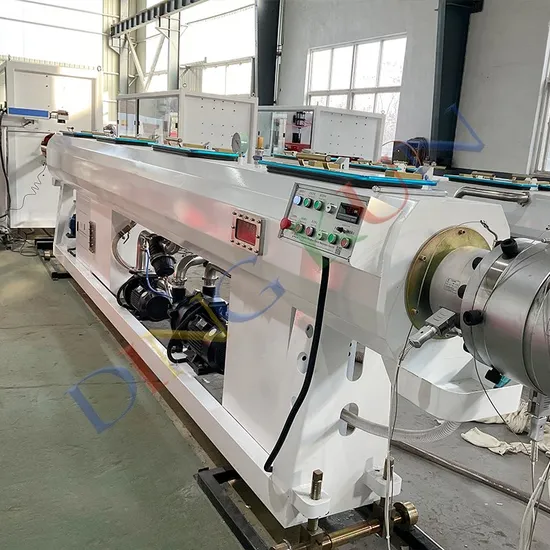

Detailed Photos
DINGKUN is committed to providing full support for its local and international clients and dealers and will always provide a prompt response to customer enquiries.
1. Provide all the machines for the complete production according to customer's requirements.
2. Provide complete service for factory layout and other information to help customer to build the factory.
3. Provide the raw material to the customer if need.
4. Provide good service for machine installation and training, until the customers can run the machines and make stable production.
5. Provide after-sell service for all the life, except one year quality guarantee,
6. Provide good quality, good price and good service to customer. We are the professional and trustable supplier for turnkey projects. Let us do win-win business together.

---
