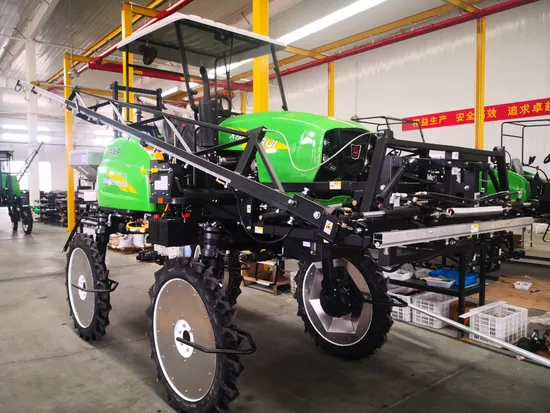

700L Type High Clearance Propelled Agriculture Boom Spray

Product Description

Product Description

Product Parameters

SPECIFICATION:

No.	SPECIFICATION		UNIT	TECHNICAL DETAILS	TECHNICAL DETAILS	TECHNICAL DETAILS	TECHNICAL DETAILS	TECHNICAL DETAILS	TECHNICAL DETAILS
1	Type		/	Self - Propelled	Self - Propelled	Self - Propelled	Self - Propelled	Self - Propelled	Self - Propelled
2	Model No.		/	3WPZ-700	3WPZ-700A	3WPZ-700B	3WPZ-700C	3WPZ-700D	3WPZ-1300A
3	Overall Dimension		mm	4860x2010x2980	5950x2010x2980	4860x2010x2980	5950x2010x2980	5950x2010x2990	6050x2230x3170
4	Tank Capacity		L	700	700	700	700	700	1300
5	Net Weight		kg	1620	1650	1680	1750	1930	3280
6	Work Pressure		Mpa	0.2-0.5	0.2-0.5	0.2-0.5	0.2-0.5	0.2-0.5	0.2-0.8
7	Nozzle Type		/	Flat Fan Spray Nozzle	Flat Fan Spray Nozzle	Flat Fan Spray Nozzle	Flat Fan Spray Nozzle	Flat Fan Spray Nozzle	Flat Fan Spray Nozzle
8	Spray Boom	Lifting and Drop Drive Type	/	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
		Fold Drive Type		Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
		Boom Length	mm	11350	14350	11350	17160	17160	24750
		Spraying Width	mm	12000	15000	12000	18000	18000	25000
9	Engine	Engine Type	/	Water Cooled, 4 Stroke,Three Cylinder Diesel Engine	Water Cooled, 4 Stroke,Three Cylinder Diesel Engine	Water Cooled, 4 Stroke,Three Cylinder Diesel Engine	Water Cooled, 4 Stroke,Three Cylinder Diesel Engine	Water Cooled, 4 Stroke,Three Cylinder Diesel Engine	Water Cooled, 4 Stroke,Three Cylinder Diesel Engine
		Engine Power	kw/(r/min)	36.8/2400	36.8/2400	36.8/2400	36.8/2400	36.8/2400	74/2400
10	Pump	Pump Type	/	Triplex Plunger Pump	Triplex Plunger Pump	Triplex Plunger Pump	Triplex Plunger Pump	Triplex Plunger Pump	Triplex Plunger Pump*2
		Workig Pressure	Mpa	1.5-4	1.5-4	1.5-4	1.5-4	1.5-4	1.5-4
		Flow	L/min	36-81	36-81	36-81	36-81	36-81	(36-81)*2
11	Ride Height		mm	1050	1050	1050	1050	1050	1200
12	Wheelbase		mm	2050	2050	2050	2050	2050	2300
13	Track		mm	1520	1520	1820	1820	1820	1860
14	Tire	Outer Diameter	mm	1100	940	1100	1100	1400	1400
		Tire Width	mm	100	120	100	120	100	130
		Tire Type	/	Pneumatic Tire	Pneumatic Tire	Pneumatic Tire	Pneumatic Tire	Pneumatic Tire	Pneumatic Tire
15	Brake Type		/	Friction Plate	Friction Plate	Friction Plate	Friction Plate	Friction Plate	Wet Type Friction Plate
16	Clutch Type		/	Pressure Plate Clutch	Pressure Plate Clutch	Pressure Plate Clutch	Pressure Plate Clutch	Pressure Plate Clutch	Pressure Plate Clutch
17	Drive System		/	Four-wheel Drive	Four-wheel Drive	Four-wheel Drive	Four-wheel Drive	Four-wheel Drive	Four-wheel Drive
18	Steering System		/	Four-wheel Steering	Four-wheel Steering	Four-wheel Steering	Four-wheel Steering	Four-wheel Steering	Four-wheel Steering
19	Spreader Type		/	Single-disc Spread/Double-disc Spread
20	Spreader Lifting and Drop Type		/	Vertical Translation

Detailed Photos

Independent research and development
of the sixth generation of high-end drive axle, using high-quality alloy steel 20CrMoTi, strict execution of heat treatment and carburizing quenching high-temperature tempering process, high strength.
The whole system is standard with spray-rod automatic balance structure. The spray-rod buffer adopts extra thick spring, which is more anti-collision, anti-impact and can effectively avoid the damage of spray-rod and sprinkler head due to external force. It is the first one in China.
Customized high-flowered tires, the highest amount of glue in the industry, the ability to climb stronger, better through, longer service life
Premium brand battery, 24V dual battery structure, better startup, more durable and more stable.
The main spray frame adopts double cylinder lifting structure, which greatly enhances the stability, can adjust the nozzle height to the highest and the lowest to the maximum extent, and the adjustment range is better than similar products in the same industry.
The frame of the whole machine is made of manganese steel with good elasticity and high strength. The chassis of the car is adopted in the process of pickling, phosphating, electrophoresis and then spray painting or plastic spraying.
Body learning design driving space, more comfortable, more reasonable, more convenient to operate. Add brand seat, consider everywhere for you.
FAQ

1.Q:Are you a factory or trading company?
A:Yes, we are a factory, and our factory is located in Shandong China. Nearly Qingdao port.
2.Q:How about the quality control in your factory?
A:Full as people are always paying great attention to the quality controlling from the beginning to the end. With more than 10 years experience in this file, each product will be tested one by one before packing, our product has passed CE GS etc.
3. Q: Is it all right to make customer's own brand name?
A:Yes,we can accept OEM, also can add your logo on it.
4. Q:What is the payment term you can accept?
A:Usually we can accept T/T,western union and other payment term by negotiation.

5. Q:Can I get one sample?
A:Sure you can,and you need to pay for sample charge which will be returned after the mass order signed.

---
