Product Details
Product Description
Product Description

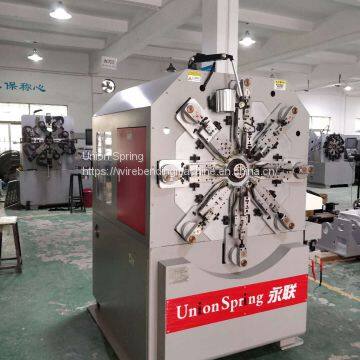

Machine description:
1. using the unique camless and rockless arm design, the adjustment of the technical requirements are reduced, the adjustment time is greatly reduced, the adjustment speed is more than 50% faster than the traditional CAM machine, the production speed is fast, accurate positioning, stable operation, strong expansibility;
2. Japanese Sanyo motor, imported precision bearing parts , and imported guide rail to improve the motion accuracy, ensure stable operation, durability and effectively extend the service life of the machine;
3. Intelligent professional-level industrial computer operating system, multi-language display, easy to learn and operate operation interface , powerful functions to meet the requirements of complex multi-tasks.
4. operating system protection device, wire feeding frame broken alarm, safety door protection mechanism, to provide comprehensive protection for the operator and the machine;
Specification：
Model
| US-236R
| US-480R
|
Axis
| 12
| 12
|
Wire Diameter
| 0.3-2.5mm
| 1.5-5.0mm
|
Wire Wheel Sets
| 2 Sets
| 3 Sets
|
Slide Axis
| 0.75KW*8
| 2.0KW*8
|
Wire Feeding Axis
| 2.7KW
| 4.4KW
|
Rotary Wire Axis
| 2.0KW
| 2.7KW
|
Rotary Quill Axis
| 0.75KW
| 2.0KW
|
Spinner Axis
| 0.4KW
| 1.2KW
|
Machine Size
| 1550*1500*1800mm3
| 2200*1930*1950mm3
|
Machine Weight
| 1500KG
| 3000KG
|
Shipping
FAQ
1. Q: How about the after service?
A: We have a strong team, special for after service. We can arrange engineers to do service for you.
2. Q: Are you factory or trading company?
A: We are a factory in this field nearly 20 years
3. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Shenzhen City. Guangdong province. When you arrive Shenzhen you can contact me,I will pick you up .
4. Q:How does your factory do regarding quality control?
A:Quality is priority. From material selection to machine completion, we will spend a lot of time to strictly monitor the operation of the machine. If the machine does not meet the quality we require, we will not ship it.
>>
