Product Details
Product Description
Product Description
A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of of 133 MHz, up to 0.5MB of Flash and a TQFP-80 package.
The SAK-TC212S-8F133F AC belogs to the AURIX™ TC21xL family. Its innovative multicore architecture, based on up to three independent 32-bit TriCore CPUs, has been designed to meet the highest safety standards, while simultaneously increasing performance significantly. The TC21xL family belongs to the TC2xx AURIX™. Equipped with a TriCore with 133 MHz, a single voltage supply of 3.3V and a Powerful Generic Timer Module (GTM), the TC21xL series aim for a reduced complexity, best-in-class power consumption and significant cost savings.
Summary of Features
TriCore with 133MHz / DSP functionality
Up to 0.5MB Flash w/ ECC protection
64KB EEProm @ 125k cycles
Up to 56KB RAM w/ ECC protection
16x DMA channels
Redundant and diverse timer modules (GTM, CCU6 , GPT12)
Safety management unit ( SMU )
I/O, clock, voltage monitor
24x 12bit SAR ADC converter
Powerful Generic Timer Module (GTM)
Sensor interfaces: 4x SENT
State of the art connectivity: 2x ASCLIN, 4x QSPI, 3x CAN including data rate enhanced CAN FD
Wake-up Timer
Single voltage supply 3.3V
Developed and documented following ISO 26262 to support safety requirements up to ASIL-D

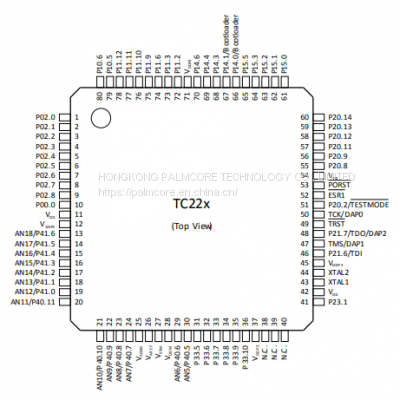

TQFP-80 package
Ambient Temperaure range -40°...+150°
AUTOSAR V3.2 and V4.x
>>
