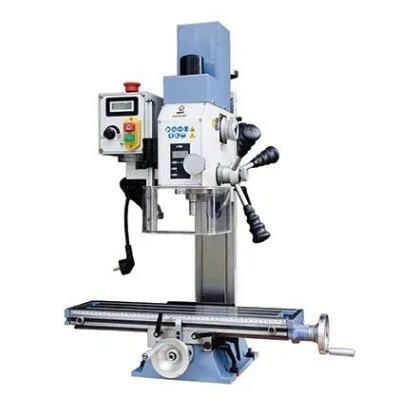

Drilling and Milling Equipment ZAY7016V for Metal working

US$700.00 1 Set (MOQ)

Basic Info.

Model NO.
ZAY7016V
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Condition
New
Table Size
500*140mm
Drilling Capacity
16mm
Max Face Mill Capacity
50mm
Spindle Travel
130mm
Packing Size
520*450*760
Transport Package
Standard Plywood Package
Specification
CE
Trademark
WMT
Origin
Anhui
HS Code
84592900
Production Capacity
50 Sets/ Month

Product Description


Drilling and Milling ZAY7016V Features:
1.Gear head and square column
2.Precision ground worktable
3.Tilting and swiveling head
4.With Mirco-feed hand wheel and lever down feed
5.Adjustble gibs on table
6.Adjustable stops on table
7.Accurate position ,strong rigidity,strong cutting power
8.Gear drive ,lower noise
Main Specification
Specification ZAY7016V ZAY7020V/ZAY7020LV ZAY7025V/ZAY7025LV
Drilling capacity Φ16mm Φ20mm Φ25mm
Max. face milling capacity Φ50mm Φ63mm Φ80mm
Max. end milling capacity Φ16mm Φ20mm Φ25mm
Max.distance spindle to table 220mm 355mm 355mm
Working table size 500×140mm 500(700)×180mm 500(700)×180mm
Spindle rotary angle ±90° ±90° ±90°
Spindle taper MT2/MT10 MT2 MT3
Spindle speed 20-2250rpm 20-2250rpm 50-3000rpm
Sleeve stroke 50mm 50mm 50mm
Longitudinal travel 320mm 350mm 350mm
Cross travel 160mm 140mm 160mm
Motor power 600w 850w 1000w
N.W/G.W 70/90kgs 118/138kgs(130/160kgs) 130/158kgs(140/168kgs)
Packing size 520×450×760mm 610(810)×560×880mm 620(770)×720mm
