Automatic CNC Press Brake 1000mm Flexible Folding Machine for Metal Panel

Product Description

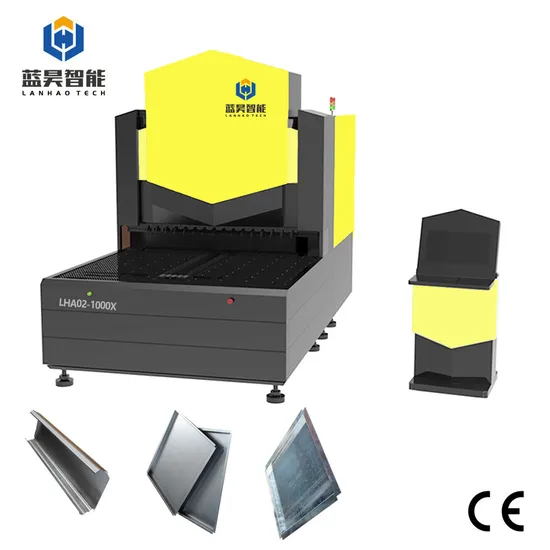

1 Equipment appearance 1.1 Equipment Outlook 2 Technical parametres

LHA-1000X-02 Technical parameters
Loading method	Suction cup
Worktable structure	Brush
Max. bending speed	0.2 second/time
Max.bending width	1000mm
Max.Bending size	L1000mm W1000mm
Max. Bending height	170mm
Rated voltage	380V
Total power	25KW
Average power	About 1.1KW
Noise decibels	About 50 db
Machine size	L285cm W150cm H280cm
Total weight	7 tons
User operating environment	Win7 or above operating system
Max. Bending width	UTS 520N/mm2 304 stainless steel 1.0mm UTS 410N/mm2 cold plate 1.2mm UTS 265N/mm2 aluminium plate 1.6mm
Min. Panel thickness	0.35mm
Four sides forming, min. Inner size	140mmx210mm
Double sides forming, min. Inner size	140mm
Axis	Standard synchronized 9 axis

CNC system	Lanhao Intelligent	PC-BASE self-developed 9 axis+ synchronized full servo CNC control system.
Servo motor	Joint R&D	Joint R&D, perfectly matching Lanhao control system.
Bearing	NACHI	Japan NACHI, bearings diameter up to 16mm.
Screw rod	Nanjing Technical Equipment	8020 heavy type grinding grade screw rod.
Line rail	Nanjing Technical Equipment	Nanjing Technical Equipment heavy-duty high-precision P3 class 55 roller type line rail.
Lathe bed	Lanhao Intelligent	Self-developed high-grade casting machine body, using high-grade QT500-7 and gray iron 250 casting.
Tools	Lanhao Intelligent	Lanhao patented tool.
Pneumatic accessories	Japan SMC/Taiwan AirTAC	Japanese/Taiwanese brands
Reducer	Joint R&D	High-precision helical tooth planetary reducer
Coupling	TECMEN	Sino-German joint venture brand
Oil system	Taiwan Yuxiang	Taiwan brand
Suction cup	Airbest	Oil-proof material.

3.Company File
4.Factory View
5.Application
6.Finished Workpiece
7.Automatic Load/Unload

---
