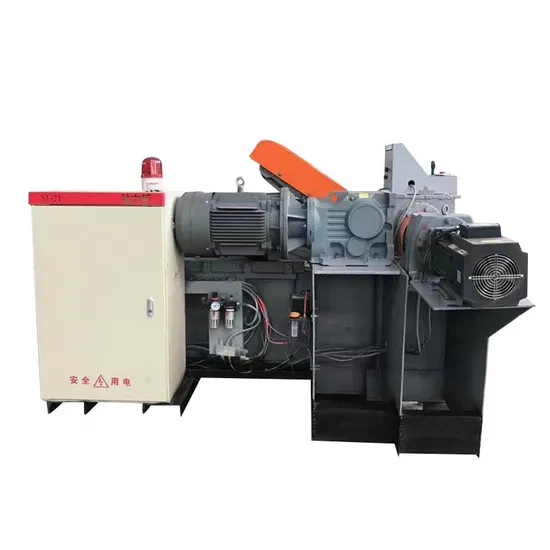

8 Feet Spindle Less Veneer Peeling Lathe for Wood Log Processing

Product Description

Product Description

1	Model	WXQ-2700L-450
2	Double roller	diameter 125 mm
		R87 hardened reducer, 2 set
		7.5 KW motor, 2 sets
3	Single roller	diameter 125 mm
		R87 hardened reducer, 2 sets
		7.5 KW motor, 2 sets
4	In feeding	servo motor 11 KW, 1 set
5	Guide	2 units of Oil-immersed slide bar
6	Guillotine	RV110 reducer, 4 KW motor 1 set
7	Rubber roller	RV110 reducer, 4 KW motor 1 set
	Peeling wood log size	diameter 450 mm , length 2600 mm
	Wood log diameter after peeling	Minimum log diameter 35 mm
8	Peeling thickness	1.5 mm - 3.6 mm
	Peeling speed	0-90 meters per minute
	Total motor power	49 KW
9	Electricity standard	380V, 50 HZ , 3 phases
10	Machine size	5000*2500*1450 mm
11	Weight	8500 KG

Detailed Photos
Company Profile
Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine, plywood production machine, particle board machine, MDF board machine, saw mill machine, related machine, materical and spare parts for wood-based panel machinery.
Main business range is as following:
1-wood veneer production machine:
Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.
2-plywood production machine, film faced plywood machine:
Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, boiler, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.
3- Particle board machine and MDF board machine.
4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.
Packaging & Shipping
FAQ
1.Can the product be customized?
Yes, we support product customization. Customize different products according to your needs.
2.Does the product have after-sales service?
Yes, we offer both online and offline service with a one-year warranty and lifetime after-sales.
3.Why choose us?
Excellent quality and service, as well as cost-effective products.
4.How to ensure the quality of the product?
Welcome to our factory to see the production process.
5.Who is responsible for the installation and commissioning of the machine?
We have more than 15 technicians on site to guide, install and commission the equipment.

---
