Product Details
Product Description
Product Description

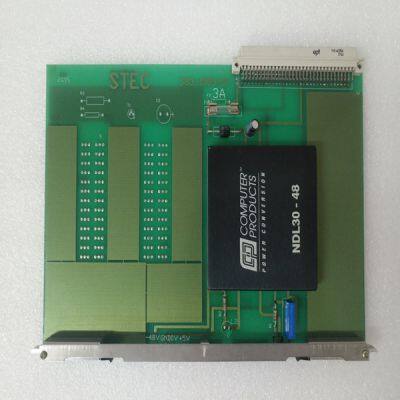

Brand:STEC
Type:S83-1003-01
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
The following sequence occurs when the protection circuits generate a fault. One or more faults are detected by the control logic The fault source is latched – only for latched faults The output stage is disabled. The LED indicates the appropriate fault code. For non-latched faults when the fault condition is cleared the drive re-enables automatically. Latched faults are cleared by setting the Enable/ input to the disable state or by cycling (off/on) the Control Power. NOTE: The large bus capacitors store substantial energy. To use the control power to reset a fault, the power should be removed for at least 30 seconds to ensure that the fault resets. Selfresetting faults disable the drive and do not return it to normal operation until 50-100 ms after the fault condition clears. When multiple faults occur, the highest priority fault is reported. After that fault is cleared and the drive is reset by cycling the enable input, the next highest priority fault that still exists will be displayed.No faults, power stage Enabled Normal Operation OFF Control power not applied or insufficient control power applied Loose or open circuit wiring of control power input. Low input voltage to control power supply. Fast Blink No faults, power stage Disabled Hardware or Software Enable inactive, to enable drive apply hardware enable and set software enable. 1 Not Assigned 2 Motor Over Temp Motor temperature exceeds allowed limit High ambient temperature at motor. Insufficient motor heat sinking from motor mounting. Operating above the motor’s continuous current rating. Motor temperature sensor failure or not connected. 3 Drive Over/Under Temp Temperature of drive heatsink/chassis is outside of allowed limits High or low drive ambient temperature. Restriction of cooling air due to insufficient space around unit.. Operating above the drive’s continuous current rating. 4 Drive I*t Too High The product of the drives output current multiplied by time has exceeded allowed limits. If current foldback is enabled the drive peak output current automatically reduces to 0.67% of DIpeak. If foldback is not enabled, the drive will fault. Mechanically-jammed motor. Motion profile acceleration requires peak current for too long of a time duration. Machine load on the motor increased by friction. Wiring problem between drive and motor yielding improper motion.
Motor commutation error. Drive under-sized for application, friction or load. 5 Motor I*I*t Too High Motor current amplitude squared multiplied by time has exceed allowed limits Mechanically-jammed motor. Motion profile acceleration requires peak current for too long of a time duration. Machine load on the motor increased by friction. Motor commutation error. Motor under-sized for application, friction or load. 6 Optional Battery low Optional fault used to indicate SFD battery supply voltage is low Battery low fault enabled and battery is not installed. SFD Battery backup voltage is low.
>>
