Snap Lock Forming Machine Roof Panel Roll Former

Product Description

Product Description

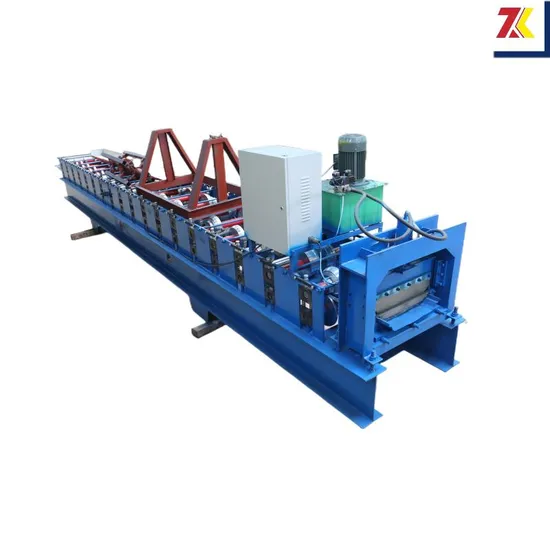

Snap lock standing seam machine Self lock roof sheet roll forming machine
You might want to look for something to facilitate the installation of snap lock panels for pitch roofs . The roofing roll forming machine does exactly this job. The equipment is meant for easy manufacture of snap lock standing seam panel. The machine works with any kind of metal. You can adjust length and width manually. As well as that you can regulate the form of the end product: whether it be straight or trapezoidal. You can also change the pressure force of vertical rollers which will effect the stiffness and thickness of the metal panel. There is also an option to mount extra rollers for half round and trapezoidal ribs. The machine also drills holes for concealed fastening of the panels.
Machine Working Flow


Layout
Product Parameters

ITEM	SPECIFICATION
Material Thickness	0.3-0.8mm (PPGI,GI,GA,PPGA), 0.8-1.2mm(Aluminum)
Raw Material	Pre-painted steel coils; Aluminum, Galvalum, Galvanized etc
Forming Speed	20m/min
Power	5kw
Material of Shaft	45# steel
Material of Roller	45# steel with tempering treatment and chrome coating treatment
Weight	4500kg
Material of cutting	Cr12 steel
Dimension	8000*1400*1500mm
Effective Width	as required
Shaft Diameter	70mm
Roller Station	18 rows

No.	Component	Quantity
1	Decoiler	1 set
2	Guiding	1 set
3	Forming system	1 set
4	Hydraulic cutting	1 set
5	Receiving table	2 sets
6	Hydraulic station	1 set
7	PLC control system	1 set
8	Spare parts	several

Detailed Photos
Product Application


Packaging & Shipping


Company Profile

Company Profile
Cangzhou Zhongke Cold roll Forming Machine Factory is a professional manufacturer and exporter engaged in the design, development and production of cold roll forming machines and mechanical materials. The company has cooperated with a number of manufacturers and associates. Located in northwest Zhangocated, Cangzhou, it has a long history and is home of machinery. All products are in line with international quality standards, well received by different markets around the world. With 17 years of working experience, we have our own factory and rich experience in customized products. We can provide quality products and best service.
OUR ADVANTAGES

SAMPLE DISPLAY
OUR PRODUCT

Qualification certificate



FAQ
Q1:How to play order?
A1:Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company .
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing
running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).

---
