Fully Automatic Customized Packing Machine Laundry Detergent Cleaner Filling Machine

Product Description

Product Description Fully automatic Factory Customized Multi Heads Laundry Detergent Cleaner Filling Machine
Introduction

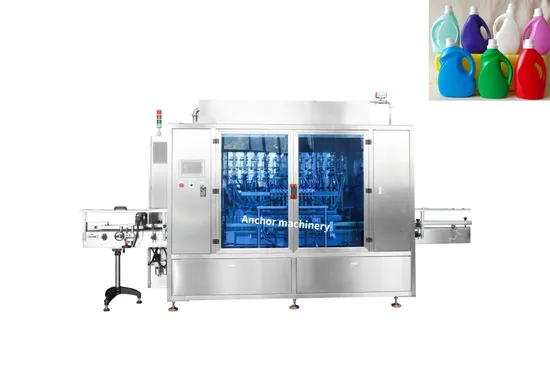

This is an automatic plunger type linear filling machine, equipped with big touch screen, PLC controller, photoelectric sensor and Electric pneumatic control system.
Equipped with anti-drip filling heads to ensure clean and hygienic in filling process, easy adjusting for filling volume and filling speed, no bottle no filling, automatic liquid level control.
It has a wide range of application, easy adjustment, improve the trouble of changing the dial plate when changing the bottle type on rotary filling machine.
The machine is widely used in beverage, pharmaceutical, chemical, pesticide and other industries for viscous liquid. Parameters

Model	TS-GZ series
Filling volume	100-1000ml;1000-5000ml
Filling head	2	4	6	8	10	12
Filling capacity(Effect by different filling volume and material state )	800-1000b/h	1500-2000b/h	2000-2500b/h	2500-3000b/h	3500-4000b/h	4000-4500b/h
Filling precision	≤±0.1%
Power supply	380V,220V 50-60HZ
Power	≤1.5kw
Air pressure	0.6-0.8MPa 600L/min
Net weight	500kg
Dimension (mm)	2800*1500*2000mm

Features
Fast machine adjustment: the speed of changing the bottle type is fast, and there is a formula-saving function. After saving the parameters, one button can complete the machine adjustment, which is very convenient and practical to save time;
The use of infrared sensors to accurately find bottles and follow-up filling ensures that the production process does not stop, ensuring smoother operation and production of the equipment.
Wide range of applicable bottle types: as long as it can stand on the line without falling over, all kinds of special-shaped bottles with the bottle mouth vertically upward are also suitable, no special adjustment is required, and the bottle can be placed on the conveyor at will, which greatly reduces the labor intensity of workers;
High efficiency: fast filling speed, good stability, each filling volume cylinder is individually controlled by a brand servo motor, and the filling accuracy is high;
Easy to clean: hoop-type connection and fixation, the cylinder body and the piston rod are connected separately and can be partially disassembled and cleaned. There is an automatic cleaning button on the main control panel. The storage tank with the see-through window on the top of the machine is equipped with an automatic flushing rotating head for automatic cleaning; the mobile external storage tank is convenient for washing in the cleaning room; it can be selected according to customer needs.
Company Profile
FAQ

Q1. How can you control the quality and delivery?
Quality is very important, we take much attention to control our quality from raw materials to the end. We will test every machine before it leaves our factory to make sure it's working good. Our factory has passed ISO. We also have audit periodically to make sure our products qualified.
Q2. How many days will you finish installing?
We will finish installation and training within 1-2 weeks.
Q3. What do we do if we encounter problem about the machine?
Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip).
Q4. How long is your machine's warranty period?
All our machine have one year guarantee.
Q5. What's your transportation way?
LCL and FCL by sea, by express (DHL, TNT, UPS) and by air.
Q6. Does your engineer speak English?
Our engineers understand a little English. All of our engineers have more than five years machine installation experience.

---
