2m Milling Machine Xm2005K Asphalt Milling Machine in Russia

US$280,000.00
1 Piece
US$270,000.00
2+ Pieces

Basic Info.

Model NO.
XM2005K
Structure
Bed type
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
2m Milling Machine Xm2005K Asphalt Milling Machine
Rated Power
447/2100kw/Rpm
Operating Weight
30500kg
Maximum Paving Speed
2.6km/H
Maximum Milling Width
2000mm
Transport Package
Nude
Specification
7435X1020X980mm
Trademark
RICHMCHN
Origin
China
HS Code
84791021
Production Capacity
100unit/Year

Packaging & Delivery

Package Size
760.00cm * 120.00cm * 110.00cm
Package Gross Weight
31000.000kg

Product Description

Product Description

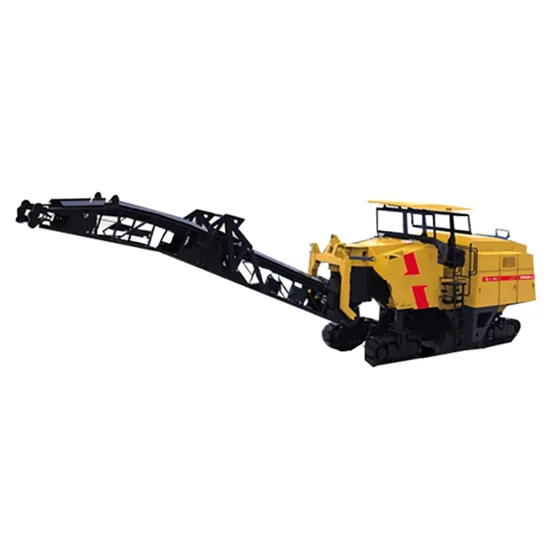

XM2005K 2m Cold Milling Machine Crawler Type
Performance Characteristics:
* Four crawlers are independently driven by hydraulic motors. All speed regulation can be operated on the control console at both sides of the driver.
* The power of diesel engine is transmitted through the clutch and power conveyor belt to the reducer of milling rotor, in order to provide the biggest milling power
* The milling machine is equipped with a set of accurate automatic vertical control device to control the milling depth.
Detailed Photos

Product Parameters
Item
Unit
XM2005k
Maximum milling width
mm
2000
Maximum milling depth
mm
320
Milling wheel
Tool spacing
mm
15
Number of tools

162
Milling wheel diameter (with tool)
mm
980
Milling wheel maximum inclination
°
5
Diesel engines
Cooling method

Water cooling
Model

DHP13
Number of cylinders

6
Rated power
kw
390
Engine speed
rpm
2100
Fuel consumption: full load
l/h
103
Speed/grade ability
Working speed
m/min
0-34
Walking speed
km/h
0-5
Theoretical Gradeability (Working Blocks)
%
60%
Ground clearance

320
Weight / load
Shipping weight
kg
30000
Working weight
kg
34000
Track device
Front track
mm
1720×300×620
Rear crawler
mm
1720×300×620
Box volume
Fuel tank
L
1400
Hydraulic tank
L
400
Water tank
L
3400
Electrical system
V
24
Conveyor belt device
Aggregate conveyor belt width
mm
800
Discharging conveyor width
mm
800
Conveyor belt conveying capacity
≤m3/h
330
Shipping dimensions
Machinery (length×width×height)
mm
7650×2580×3000
Belt conveyor (length × width × height)
mm
8060×1150×1500
