Product Introduction

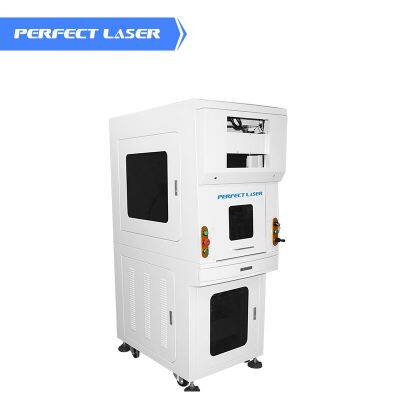

Perfect Laser metal etching machines can be carved both on metal materials and some non-metallic materials.
The metal etching machines has a sealed structure. During work, fog will be kept in the enclosed laser cabinet without emission to outside. Environmental, friendly and healthy, this design is special for European market or other markets which have high demands for working environment.
The effect of the metal etching machines is particularly outstanding.
Product Features
1. The metal etching machines can reach 100000 hours long lifetime, No consumables, Free of Maintenance.
2. Best Marking Effect, Deep Marking, Higher Accuracy.
3. The metal etching machines don't need to adjust the laser path, and it uses integrated air cooling.
4. This laser etcher for metal has low power consumption, small and compact.
Application
The metal etching machines are mainly marked in areas for smoothness, finesse demanding, such as electronic products, metal ware, watches, jewelry, IC, plastic buttons and other graphic surface.
The laser etching equipment can etch copper, brass, stainless steel, aluminum, iron and many kinds of metals and hard plastics.
Technical Data
Laser Sourse
|
IPG Series
| Pulsed, High Energy Ytterbium Fiber Lasers
|
Mode of operation
| Pulsed
|
Polarization
| random
|
Q-switched operation
|
Output power adjustment range
| 10%-100%
|
Nominal average output power
| 20W
|
Central emission wavelength
| 1060-1070 nm
|
Emission Bandwidth (FWHM)
| <10 nm
|
Long-term average power instability
| <5%
|
Pulse width, (FWHM)
| 100 ns
|
Laser switching ON time
| 180 μsec
|
Laser switching OFF time
| 180 μsec
|
Pulse Repetition Rate* kHz
| 20-80 kHz
|
Energy per pulse (PRR = 20 kHz)
| 0.95 mJ
|
Typical beam quality, M2
| <1.8
|
Output fiber delivery length
| 3m
|
Operating voltage
| 220V
|
Max. Power consumption
| 0.5 kw
|
>>
