Szg-1000 Automatic Vacuum Dryer Machine Double Cone Rotating Vacuum Drier

Product Description

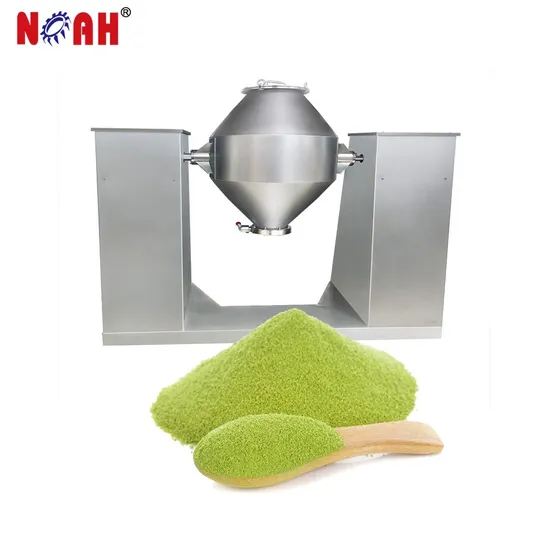

Szg-1000 Automatic Vacuum Dryer Machine Double Cone Rotating Vacuum Drier The machine can feed powder or granule into twin cone container through vacuum transmission or manual. With continuous rotation of container, material will make complex impacting motion in the container and reach to uniform mixing.
Applications
1. Material that cannot undertake high temperature.
2. Material that is easy to oxidize.
3. Material that do not permit to destruct.
4. To recover material with residual volatile.
5. Material with vigorous irritative and toxicity.

Item	100	350	500	750	1000	1500	2000	3500	4500
Name(L)	100	350	500	750	1000	1500	2000	3500	4500
Total volume(L)	50	175	250	375	500	750	1000	1750	2250
Heating area	1.16	2	2.63	3.5	4.61	5.58	7.5	9.6	13.8
Rotating speed	6	6	6	6	6	6	6	4	4
Power(kw)	0.8	1.5	1.5	2	3	3	4	5.5	7.5
Height of frame rotating(h)	1750	2100	2250	2490	2800	2940	2990	3490	4150
Designed Pressure in container(MPa)	-0.1~0.15
Designed pressure in interlayer(MPa)	0.3
Total weight(kg)	800	1100	1200	1500	2800	3300	3600	6400	7500

---
