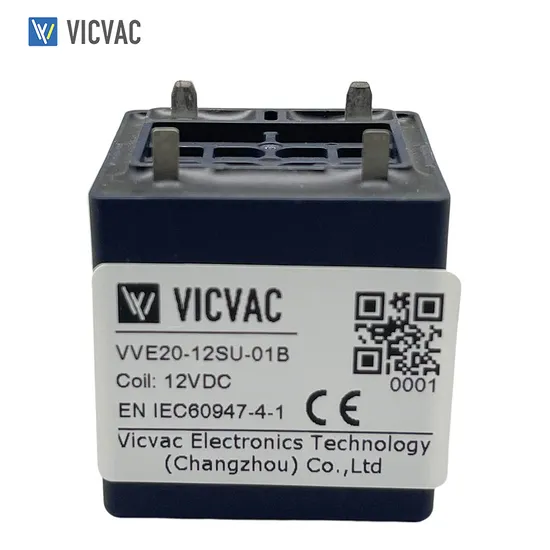

Vve20 High Voltage DC Contactor 60V 90V 250V 450V 750V 1000V DC 20A Normally Open Contact 12V Charging Station Energy Storage

US$8.50-10.50 10 Pieces (MOQ)

Basic Info.

Model NO.
VVE20-12SW-20B
Phase
1
Main Circuit Rating Voltage
1000V
Main Circuit Rating Current
20A
Type
Dc Contactors
Transport Package
Carton
Specification
560*370*135
Trademark
vicvac
Origin
Jiangsu Province, China
HS Code
8536300000
Production Capacity
500000pieces/Years

Product Description

Product Parameters
Coil Data
Coil VoltagePick-up VoltageDrop-out VoltageAvg. Holding CurrentHolding Power
12VDC9VDC Max0.5VDC Min250mA Max2.5W Max
24VDC18VDC Max1VDC Min130mA Max2.5W Max
48VDC36VDC Max2VDC Min70mA Max2.5W Max
Contact ParametersContact PolarNo polarity
Rating Voltage12-1000VDC
Rating Current20A
Current Endurance80A 30s
120A 10s
Break Current, Max, only 1 time35A 450Vdc
Contact Resistance≤50mΩ(@In=20A)
LifeMechanical Life3×105 cycles (3)
Electrical Life (1), (2)DC 450V/20A,
3000 cycles
DC 1000V/5A,
3000 cycles
Coil ParametersNominal Voltage12V
Coil PolarNo
Power-saving PCB No
(1): Resistive Load, L/R≤1ms.(2): Switching Rating, ON : OFF=1s : 9s.(3): Switching Rating, ON : OFF=0.5s : 0.5s.
Dimension
Wiring
Company Profile
Vicvac Electronics Technology (changzhou) Co.,Ltd is a leading supplier of new energy intelligent high-voltage safety core components. Its main products include high-voltage DC contactors, new energy sensors, and distribution modules, which are widely used in the field of new energy high-voltage distribution, such as new energy vehicles, charging piles, battery swapping stations, and energy storage systems.
The core team of the company is led by master's and doctoral students from well-known universities such as Tsinghua University, Southeast University, Jilin University, Huazhong University of Science and Technology, and Nanjing University of Science and Technology. It has over 10 years of work experience and strong engineering capabilities in the field of new energy and automotive electronics for leading domestic and foreign enterprises.
The company has the R&D and production capabilities for a full range of high-voltage DC contactors, new energy sensors, and distribution modules, and has innovatively developed integrated, modular, digital, and intelligent distribution switches and module products. With excellent product performance, quality, and service quality, the company has gained high recognition from many leading customers in the industry.
Company Products
High voltage DC contactor
Industrial PDU
Magnetic retention PDU customized PDU
Current sensor Open-loop Hall Closed loop Hall Diverter Leakage current Linear displacement Rotation angle Torque angle
Certifications
Multi physics field simulation
Key production equipment
FAQ
What is contactor for DC voltage?
High voltage dc contactors is called as high voltage dc relays in the industry, it's widely used in electric vehicles (EVs) and hybrid electric vehicles (HEVs). It is an electromechanical switching device with a coil used to generate magnetic force for mechanically operating electrical contacts.
1. Q: Why choose us?
A: Our advantages:
1) High quality materials and technology;
2) The cheapest but the best quality;
3) The best service answers your questions online 24 hours a day;
4) Powerful R&D team and unique patented technology;
5) Advanced and sophisticated testing equipment, as well as fully automated production lines.
2. Q: What is the delivery time?
A: According to the quantity, small orders: 12-15days, large orders: 15-20 days.
3. Q: What payment method do you accept?
A: We receive Paypal, Western union, Bank transfer (T/T), Alipay, all options.
4. Q: How can I get the after-service?
A: If quality problems happen we promise re-send the item.
5. Q: What is your warranty?
A: We offer 2~3 years warranty depend on different products.
6. Q: How to place an order?
A: 1) Tell us the model and quantity, consignee information, transportation method and payment terms.
2) We issued the invoice and sent it to you.
3) Complete payment after confirming PI.
4) Confirm Payment and arrange production.
5) Ship goods to you.
