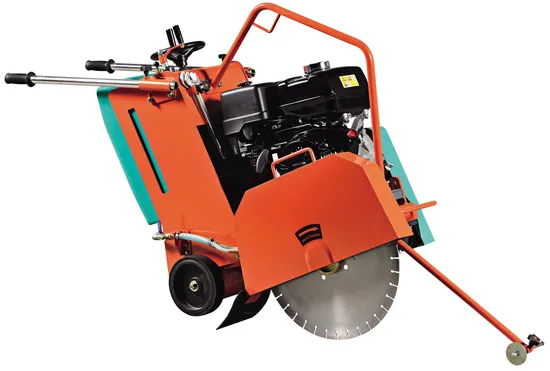

Gasoline Engine Semi-Self Propelled Concrete Cutting Machine Gyc-220 Series

Product Description

Petrol Engine Semi-self Propelled Concrete Cutting Machine GYC-220 Series
Concrete Cutter is used of cutting the expansion joint on concrete floor. Meanwhile, it can cut and groove all standard manufactures of concrete, marble and granite.
Features and Advantages:
1.It is a necessary machine in the construction of road. Super-rigid box frame ensures straight cuts while resisting warping and vibration-prolongs saw life;
2.extends blade life. Height adjustment handle with comfortable grip handles,
3.Easy crank for raising/lowing cutting depth. Hinged front lift-up blade guard is designed to provide easy blade replacement; easy-remove, rustless poly water tank provides an optimum flow and volume of water to the blade.
4. It uses sheet diamond, which has the virtues of quick cutting speed, and even cut. Meanwhile, sheet diamond could cut the steal beams in concrete. It has simply, safety construction, easy and flexible operations.
This type of design of cutting machine,low noise,high reliabilityUsing diamond film cutting,the cutting speed is quick,clean cut appearance,Along the guide rod,ensure accurate cutting direction.Water spray system design with unique,cooling and lubricating film cutting,prolonging the service life of the blade.

Specification

Model	GYC-220-1	GYC-220-2	GYC-220-3	GYC-220-4
Engine Type	Chinese Diesel KM186F	Chinese Petro Engine	EX40	Honda GX390
Power KW(hp)	6.6(9.0)	9.6(13.0)	10.3(14)	9.6(13.0)
Weight Kg(lbs)	161(354)	145(319)	146.5(322)	145(319)
Max Cutting Depth CM	20
Blade Size cm	35-50
Depth Adjustment	Handle Rotation
Driving	Semi-self propelled
Water tank capacity (L)	46

Application Scope
1.A variety of concrete,asphalt pavement,plaza stretching cutting.Specification
2.Cutting for concrete,asphalt pavement repair project.
3.All kinds of concrete cutting and grooving.
4.Other fields.
MACHINERY OPERATION PROCESSING
ASSEMBLING
PACKAGE
TRANSPORTATION

Our Customer Service team will make response to you promptly in 24h*7day.

---
